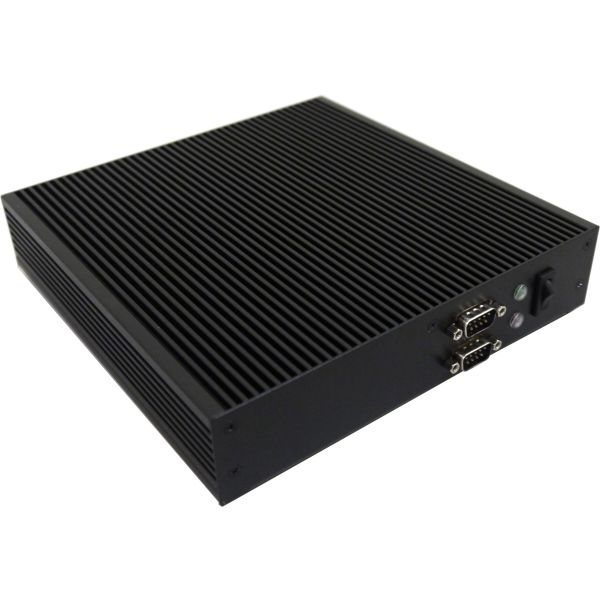

MiTAC Embedded Box PC E300

В наличност
SKU
5412D7590006
569,00 лв.

E300 is a fanless box pc, powered by the latest Intel Bay Trail performance-enhanced processor. The whole system is less than 1.5 liter size but still with versatile I/O, HDD storage and Wall mounting capability, aiming to adapt it in different environments and wide applications.

CPU: Intel® Bay Trail Desktop J1900 Processor (2M Cache, up to 2.42 GHz Quad Core)

CHIPSET: Intel® SoC integrated

SYSTEM MEMORY: DDR3L 1866, 204-pin SO-DIMM x 2, Max. 8 GB (Non-ECC)

GRAPHICS: Intel® HD Graphics

DISPLAY INTERFACE: VGA, HDMI

STORAGE SLOT: 2.5 HDD/SSD x 1 (Default w/ HDD Bracket, SATA, and SATA Power Cable in Accessories) ; mSATA x 1

ETHERNET: Realtek RTL8111G Giga LAN

AUDIO: Realtek ALC888S

I/O CHIPSET: Nuvoton NCT6683D

EXPANSION SLOT:

Storage: PCI Express Full/Haif-Length Mini Card slot (USB / PCIe / SATA)
Wireless: PCI Express Half-Length Mini Card slot (PCIe / USB)

FRONT I/O:

RS-232 x 2 (Optional)
USB2.0 x 2 (Optional)
Power Button, Power LED, HDD LED

REAR I/O:

RJ-45 x 1
USB3.0 x 2
USB2.0 x 2
VGA x 1
HDMI x 1
Mic-in x 1
Headphone-out x 1
DC-in x 1
SMA Antenna x 2 (Option for WiFi function)

INDICATOR: Power LED, HDD LED

POWER INPUT:

8~19V Wide Rage DC-in Jack Connectivity (Default)
8~19V Wide Rage DC Input w/ Terminal Block Connectivity (Optional)

POWER ADAPTER: AC to DC, DC19V/ 3.4A, 65W adaptor

THERMAL DESIGN: Fanless

MOUNTING: VESA Mount Kit Support 75x75mm and 100x100mm (Optional)

DIMENSIONS (W X D X H): 7.9” x 7.9” x 1.4” (200mm x 200mm x 35mm)

MATERIAL: Top cover: Aluminum Alloy , Bezel and chassis: Steel

OPERATING TEMPERATURE: 0 ~ 50°C (32 ~ 122°F)

OPERATING HUMIDITY: '10%~90% (Non-condensing)

VIBRATION RESISTANCE: 5Hz~500Hz/ 2Grms/ 3Axis (Non-operating)

SHOCK RESISTANCE: 120G, 2ms Duration (Non-operating)

CERTIFICATION: CE & FCC

OS SUPPORT: Windows® 10, Windows® 8.1, Windows® 7, Linux support by request

Повече информация
Производител MiTAC
Кат. номер 5412D7590006
Процесор Intel® Bay Trail Desktop J1900 Processor (2M Cache, up to 2.42 GHz Quad Core)
Охлаждане Пасивно
Графична Карта Intel® Gen7 Intel® Graphics DX 11*, OGL3.2
Мулти Дисплей Два дисплея
RAM памет 2x DDR3L SODIMM
Поддържани дискове 1x 2,5" drive bay, 1x mSATA
Дисково пространство Конфигурируемо
Звук Realtek ALC888S
Преден и странични I/O панели 2x RS232 (Optional)
Заден I/O панел DC In, Audio Out/Mic In Jacks, 2x USB 3, 2x USB 2.0, 1x VGA, 1x RJ-45, 2x SMA Antenna (Optional)
Lan Realtek RTL8111G Giga LAN
Безжична комуникация NA
Операционна система Няма
Цвят Черен
Размери 200 x 200 x 35 mm
Гаранция, месеци 24 M
