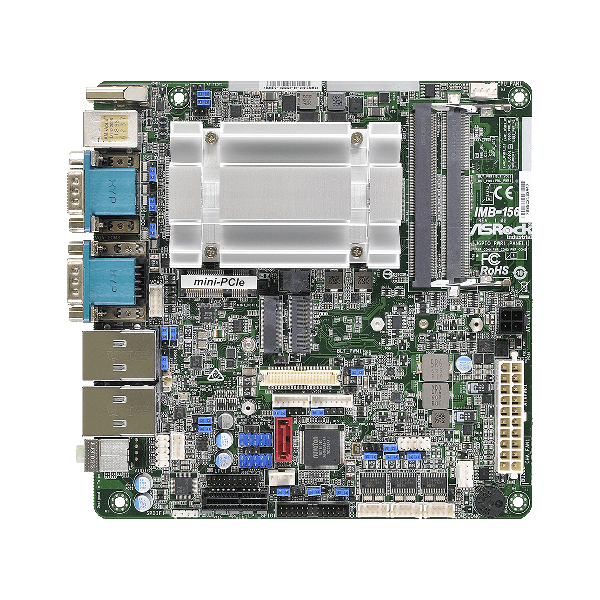

ASRock IMB-156J/ J3455, 3x RS232, DC, Mini-ITX
- Intel® Apollo Lake SoC Processor J3455
- 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz (8GB per DIMM)
- 1 x PCIe x1 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key M, 1 x M.2 Key E, 6 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI 1.4b, 1 x VGA, 1 x LVDS
- TPM header
- 12V or +19V~+24V DC-In / ATX PWR
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
Processor System
CPU: Intel® Apollo Lake SoC Processor J3455, QC, 1.5 GHz, 10W
Chipset: SoC
BIOS: AMI SPI 128 Mbit
Memory
Technology: Dual Channel DDR3L 1866 MHz
Capacity: 16 GB (8GB per DIMM)
Socket: 2 x 204-pin SO-DIMM
Graphics
Controller: Intel® Gen9 Graphics DX 12
HDMI: HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
VGA: Max resolution up to 1920 x 1200@60Hz
LVDS: Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay: Triple Display
Expansion Slot
PCIe: 1 x PCIe x1 (Gen2)
mini-PCIe: 1 x Full size with PCIe x1 and shared USB 2.0
M.2: 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
Audio
Interface: Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed: 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O
HDMI: 1 x HDMI 1.4b
VGA: 1
Ethernet: 2 x Realtek 1 Gigabit LAN
USB: 4 x USB 3.0
Audio: 2 (Mic-in, Line-out)
COM: 3 x COM (RS-232/422/485)
PS2: 1 x PS / 2 combo
Internal Connector
USB : 4 x USB 2.0 (2 x 2.54 pitch header)
COM: 3 x COM (RS-232)
Parallel: 1 (shared with GPIO)
GPIO: 8 x GPI, 8 x GPO (shared with LPT header)
TPM: TPM Header
LVDS: 1
SATA PWR Output: 1
Speaker Header: 1
Storage
M.2: 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD
SATA: 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M
Watchdog Timer
Outpt: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR: 12V or +19V~+24V DC-In / ATX PWR
Power On: AT/ATX Supported/ AT : Directly PWR on as power input ready/ ATX : Press button to PWR on after power input ready
Environment
Operating Temp: 0ºC ~ 60ºC
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
Accessories
Gift Package:
2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package:
2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB156J |
| Процесор | Intel® Apollo Lake SoC Processor J3455 |
| Охлаждане | Пасивно |
| CPU Сокет | FCBGA1296 |
| Чипсет | SoC |
| Вид памет | DDR3L SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 16 GB |
| Интегрирано видео | Intel® Gen9 Graphics DX 12 |
| Видео Изходи | VGA, HDMI, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in |
| Мрежова карта | 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
| LAN портове | 2 Порта |
| Разширителни слотове | 1 x PCIe x1 (Gen2), 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless, 1 x Full size with PCIe x1 and shared USB 2.0 |
| PS2 портове | Да |
| Брой Sata портове | 1 Порт |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 4+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 4+0 |
| LPT (Паралелен) порт | Да (Header) |
| RS 232 (серийни) портове | 6 порта |
| Допълнителни функции | RS232/422/485, GPIO, TPM Header, LVDS |
| Захранване | 12V or +19V~+24V DC-In / ATX PWR |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10, Linux |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24M |
