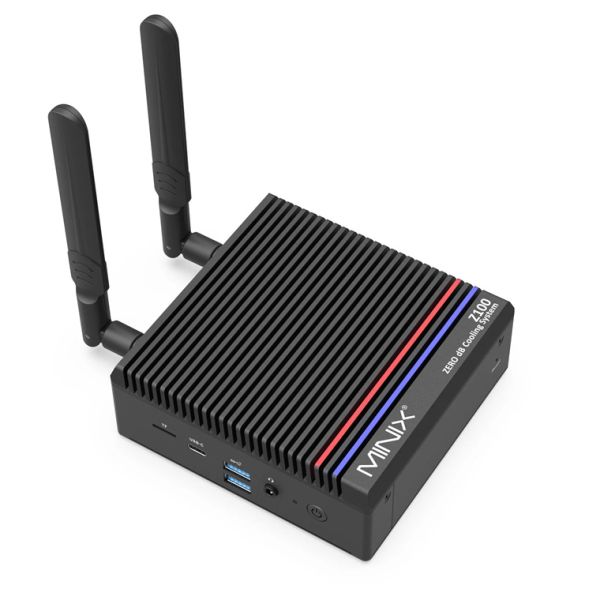

MINIX Z100-0dB Fanless Mini PC
Introducing the Z100-0dB, a pioneering fanless miniPC featuring the Intel® Alder Lake-N Quad-Core N100 Processor. Tailored for seamless browsing and office tasks, its passive cooling ensures silent operation, perfect for Home Theatre PC (HTPC) setups in quiet rooms. With an optimized top-heatsink design and premium materials, heat dissipation is maximized.
Enjoy uninterrupted CPU power, diverse connectivity options - 2.5 Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.2 - for advanced networking. Lightning-fast PCIe 3.0 x4 NVMe SSD and robust anti-static protection ensure reliability and longevity. Preloaded with Windows 11 Professional Edition, the Z100-0dB enhances productivity and security, delivering seamless computing in a compact powerhouse.
Processor
Intel® Alder Lake-N Quad-Core N100 (Base Frequency 0.8GHz, Max Turbo Frequency 3.40GHz)
Graphics Engine
Intel® UHD Graphics
Display Output
2 x HDMI® 2.1, 3840X2160@60Hz
Memory Slot
1 x 260-pin DDR4 3200MHz SO-DIMM 4/8/16GB, upgradeable to 32GB Max
Features
Wake On LAN, AC Power Loss, RTC Wake Up
Storage
128/256/512GB M.2 PCIe 3.0 x4 NVMe SSD, upgradeable to 4TB Max.
Ethernet
1 x RTL8125BG-CG 2.5 Gigabit Ethernet
LED Indicators
LEDs for Power, LAN (Active, Status)
WIFI/BT
Intel® Wireless-AX101 / AX201 (Dual Band AX Wi-Fi)
LAN Port
1 x RJ45, 10M/100M/1000M/2.5 Gigabit Fast Ethernet
USB Ports
1 x USB 3.2 Gen 2 Type-C (Data Only, up to 10Gbps), 2 x USB 3.2 Gen 2 Type-A (10Gbps), 2 x USB 2.0
Audio Jack
3.5mm Mic-in and Headphone-out Combo Jack)
Antenna
2 x External Wi-Fi Antennas
Power Button
1 x Power Button
Reset Button
1 x Clear CMOS Button (Reset BIOS)
Power Input
1 x 12V-19V DC-IN Jack
BIOS
AMI EFI X64
Dimensions (WxDxH)
123x120x46mm (4.84"x4.72"x1.81")
Weight (Net)
0.89 kg
Power Adapter
12V/3A DC-IN
Power Consumption
10-12W (Typical), 25-27W (Turbo)
Form Factor
Mini PC
Enclosure
Metal Housing
Certification
CE, FCC, RCM, RoHS
Производител | MINIX |
---|---|
SKU | Z100-0dB |
Процесор | Intel® Alder Lake-N Quad-Core N100 (Base Frequency 0.8GHz, Max Turbo Frequency 3.40GHz) |
Охлаждане | Пасивно |
Графична Карта | Intel® UHD Graphics |
Мулти Дисплей | Два дисплея |
RAM памет | 16GB DDR4 |
Поддържани дискове | M.2 PCIe 3.0 x4 NVMe SSD |
Дисково пространство | 512GB |
Преден и странични I/O панели | 1x USB 3.1 (Type C), 2 x USB3.2 Gen2 , Reset Button, Audio Out/Mic In Jacks, TF card slot |
Заден I/O панел | DC In, 2x USB 2.0, 2 x HDMI® 2.1, 1 x 2.5 Gigabit LAN, Dual band antenna |
Lan | 1 x RJ45, 10M/100M/1000M/2.5 Gigabit Fast Ethernet |
Безжична комуникация | 1 x Wi-Fi 6E 802.11ax (2.4Gbps) + BT 5.2 |
Операционна система | Windows 11 Pro |
Цвят | Черен |
Размери | 123x120x46mm (4.84"x4.72"x1.81") |
Гаранция, месеци | 24M |
