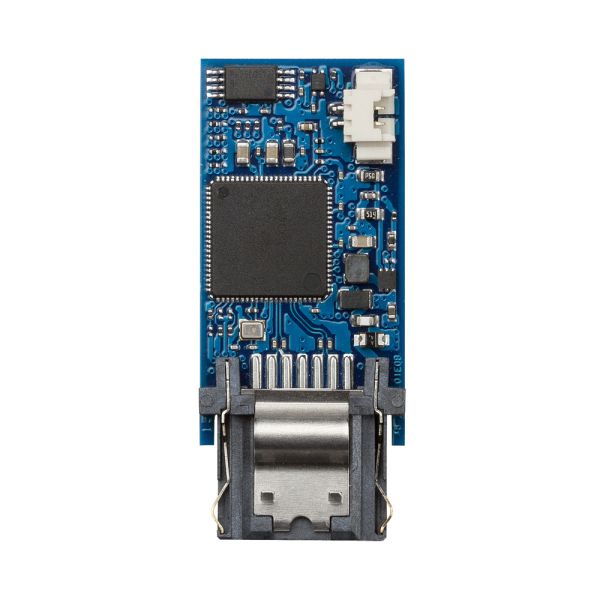

16 GB Apacer APSDM016GK2AN-CTM1 Slim2(H) 7pin 180° Industrial SATA DOM

Introduction

Apacer’s SDM5A-M (SATA Disk Module 5A - M) is our next generation disk-on-module (DOM) series that offers elevated speed boost and higher error correction capabilities. Built with SATA 6 Gb/s interface, SDM5A-M delivers exceptional performance in data transfer.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal balance of performance, capacities, reliability and cost. SDM5A-M comes in moderate capacities that are suitable to boot industrial applications and light operating systems for specific operations, while with some extra memory space for data storage. The architectural nature of SATA disk module provides higher resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A-M is built in with powerful ECC engine that can correct up to 40-bit per 1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power failure management for data integrity. Wit its trustable reliability, performance and cost effectiveness, Apacer’s SDM5A-M is definitely the ideal storage or cache solution for embedded and industrial computers, servers and thin clients.

Specs

Model: SDM5A-M 7P/180D Slim2(H)
Interface: SATA 3.0 (6Gb/s)
Connector: 7-pin
Form Factor: SATA Disk Module
NAND Flash Type: MLC
Capacity: 4GB~32GB
External DRAM: No
Sustained Read Performance (MB/sec): Up to 125
Sustained Write Performance (MB/sec): Up to 40
ECC Engine: Built-in 40-bit per 1K bytes BCH ECC
Standard Operating Temperature ( °C ): 0 ~ + 70
Extended Operating Temperature ( °C ): -40 ~ + 85
Storage Temperature ( °C ): -40 ~ + 100
Housing: Optional
H/W Write Protect: No
Screw Hole: No
Cable-less Solution: Optional (7+2 pin)

Shock

Operation: 50G, 11ms
Non-operation: 1500G, 0.5ms

Vibration

Operation: 7.69 Grms, 20~2000 Hz/random (compliant with MIL-STD-810G)120
Non-operation: 4.02 Grms, 15 ~ 2000 Hz/sine (compliant with MIL-STD-810G)

Operating Voltage: 5.0 V±5%
Power Consumption: Active mode: 160 mA & Idle mode: 80 mA

Dimension (L x W x H )

Without housing: 17 x 40 x 6.1 mm
With housing: 19.8 x 41.4 x 7.5 mm

MTBF (hours): >1,000,000
Technology: Page Mapping / Power Cable-less / Wide Temperature / S.M.A.R.T. / Content Pre-load / Erase
Application: Transportation / Embedded & IPC / Military / Gaming
