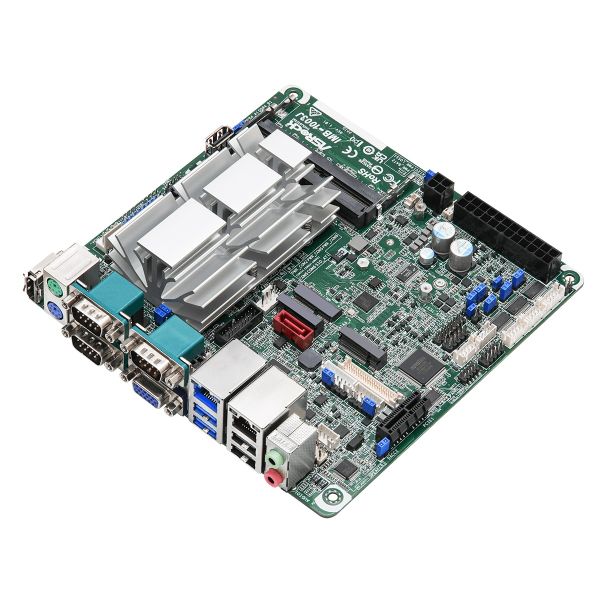

ASRock IMB-1003J/ J6412, 6x RS232, 2x LAN DC+ATX, Mini-ITX
- Intel® Elkhart Lake SoC Processors J6412
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
- 1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3
- 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
- TPM Header
- ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Processor System
CPU: Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz), 10W
Chipset: Elkhart Lake SoC
BIOS: AMI SPI 256 Mbit
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm)
Memory
Technology: Dual Channel DDR4 3200 MHz
Capacity: 32GB (16 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM
Graphics
Controller: Intel® Gen 11 Graphics
HDMI: HDMI 2.0b, Max resolution: up to 4096 x 2160@60Hz
VGA: Max resolution up to 1920 x 1200@60Hz
LVDS: Dual channel 24 bit up to 1920 x 1080@60Hz (Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay:Triple display
Expansion Slot
PCIe: 1 x PCIe x1 (Gen3)
M.2: 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G
SIM Socket: 1x SIM socket connected to M.2 key B
Audio
Interface: Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed:
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O
HDMI: 1 x HDMI2.0b
VGA: 1
Ethernet: 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB: 2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio: 2 (Mic-In, Line-Out)
COM: COM1, COM3, COM4 (RS-232/422/485)
PS2: 1 x PS/2 combo
Internal Connector
USB: 2 x USB 3.2 Gen1 (1 x USB 3.2 header )
5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM: COM2, COM5, COM6 (RS-232)
GPIO: 4 x GPI, 4 x GPO
TPM: TPM Header
LVDS: 1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output: 1
Speaker Header: 1
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD
SATA: 2 x SATA3 (6Gb/s), SATA3_2 shared with M.2 Key M
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR: ATX PWR (24+4-pin) and 12V~28V DC-In co-design
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp: -20°C ~ 70°C
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity : 5% ~ 90%
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB1003J |
| Процесор | Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz |
| Охлаждане | Пасивно |
| Чипсет | Elkhart Lake SoC |
| Вид памет | DDR4 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Видео Изходи | VGA, HDMI, eDP, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC897 HD , High Definition Audio |
| Мрежова карта | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps, LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
| LAN портове | 2 Порта |
| Разширителни слотове | 1 x PCIe x1 (Gen3), 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for WiFi, 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2, USB2.0 and SIM for 4G/5G, 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD, NVMe Support, SIM socket connected to M.2 key B |
| PS2 портове | Да |
| Брой Sata портове | 2 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 2+5 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 2+2 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 6 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, TPM Header, SATA PWR Output |
| Захранване | 12~28V DC / ATX |
| Поддържани ОC | Windows 10, Windows 11, Linux, BSD |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24M |
