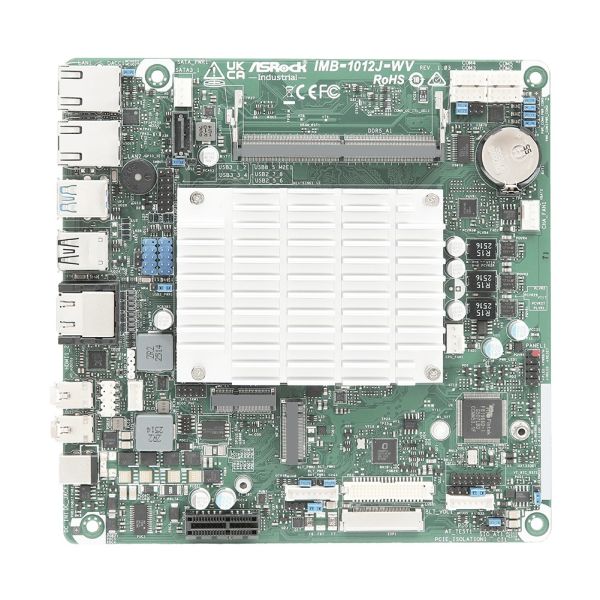

ASRock IMB-1012J-WV / N97, 4x RS232, 2x LAN, 9-28V DC, Mini-ITX
- Intel® Alder Lake-N Processors N97
- 1 x 262-pin SO-DIMM DDR5 4800 MHz, up to 32GB
- 1 x PCIe x1 (Gen3), 3 x USB 3.2 Gen2, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 4 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 1 x LVDS, 1 x eDP 1.4b
- 9~28V DC-In / 12V DC-In only (BOM option)
Processor System
CPU: Intel® Alder Lake-N Processors, IMB-1012J-WV (N97, QC, Max Speed Up to 3.6GHz, 12W)
BIOS: AMI SPI 256 Mbit
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in x 0.9-in, 17.0 cm x 17.0 cm x 2.28 cm)
Memory
Technology: Single Channel DDR5 4800 MHz
Capacity; 32GB
Socket: 1 x 262-pin SO-DIMM
Graphics
Controller: Intel® UHD Graphics
HDMI: HDMI 2.0b, Max resolution up to 4096 x 2160@60Hz
LVDS: Dual channel 24 bit up to 1920 x 1200@60Hz
eDP: eDP 1.4b, Max resolution up to 4096x2160@60Hz
MultiDisplay: Triple display
Expansion Slot
PCIe: 1 x PCIe x1 (Gen3)
M.2: 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
Audio
Interface: Realtek ALC256 HD, High Definition Audio
Etherne:t
Controller/ Speed: LAN1: Realtek RTL8111H with 10/100/1000 Mbps, LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O
HDMI: 2 x HDMI 2.0b
Ethernet: 2 x 1 Gigabit LAN
USB: 3 x USB 3.2 Gen2, 1 x USB 2.0
Audio: 2 (Mic-In, Line-Out)
DC Jack: 1
Internal Connector
USB: 4 x USB 2.0 (2 x 2.54 pitch header)
COM: COM1 (RS-232/422/485); COM2, COM3 (RS-232); COM4 (RS-232/TTL 5V/ccTalk, switch by Jumper setting)
GPIO: 4 x GPI, 4 x GPO
LVDS: 1
eDP: 1
SATA PWR Output: 1
Speaker Header: 1
Security
TPM: TPM Header, Intel® PTT
Storage
M.2: 1 x M.2 (Key M, 2280/3052) with PCIe Gen3 x1 and SATA3 for SSD
SATA: 1 x SATA3 (6Gb/s)
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR: 9~28V DC-In / 12V DC-In only (BOM option)
Power On: AT/ATX Supported
Environment
Operating Temp: -20ºC ~ 70ºC
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
| Производител | Asrock IPC |
|---|---|
| SKU | ASRIPCIMB1012JWV |
| Процесор | Intel® Alder Lake-N N97, QC, Max Speed Up to 3.6GHz, 12W |
| Охлаждане | Пасивно |
| Чипсет | Intel® Alder Lake-N SoC |
| Вид памет | DDR5 SODIMM |
| Брой слотове за памет | 1 слот |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | Intel® UHD Graphics |
| Видео Изходи | 2x HDMI, eDP, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC256 HD, High Definition Audio |
| Мрежова карта | Realtek RTL8111H with 10/100/1000 Mbps |
| LAN портове | 2 Порта |
| Разширителни слотове | 1 x PCIe x1 (Gen3), 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x1 for SSD, 1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless, NVMe Support |
| PS2 портове | N/A |
| Брой Sata портове | 1 Порт |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 1+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 3+2 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 4 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, TPM Header, LVDS , SATA PWR Output , Speaker Header |
| Захранване | 12V or 9~28V DC |
| Поддържани ОC | Windows 11, Linux |
| Форм фактор | Thin-Mini-ITX |
| Гаранция, месеци | 24M |
