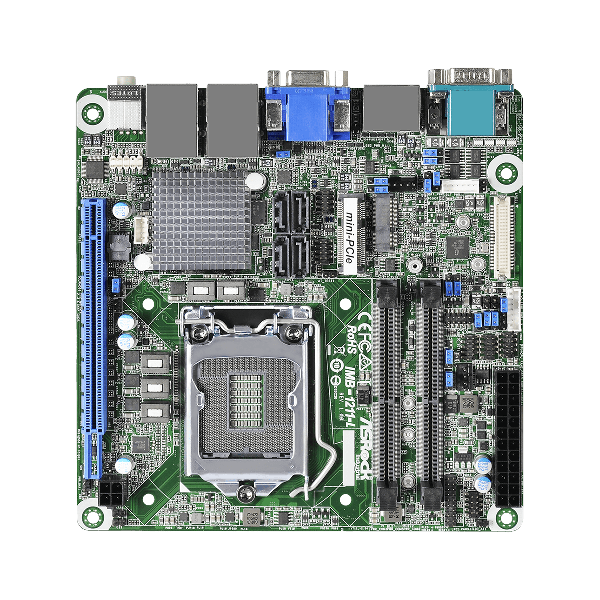

ASRock IMB-1211-L/ 2x LAN, 5 x COM, Mini-ITX

В наличност
SKU
MBASRIPCIMB1211L-1
888,00 лв.

Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron
Supports Dual Channel DDR4 SO DIMM 2400/2666, up to 32GB
2 x Displayport, 1 x VGA, 1 x Dual Channel 24-bit LVDS
4 x USB 3.1, 4 x USB 2.0, 4 x SATA3, 5 x COM
1 x PCIe x16, 1 x Mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
2 x Intel® LAN
1 x TPM 2.0 IC
ATX PWR 24+4-pin
Supports RAID function

Form Factor

Dimensions: Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU: Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)
Chipset: Intel® Q370
BIOS: UEFI

Expansion Slot

PCIe: 1 xPCIe x16 (Support riser card)
PCI: N/A
Mini-PCIe: 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2:
- 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1x M.2 (Key M, 2242/ 2280) with PCIe x4 and SATA3 for SSD
- 1x M.2 (Key M, 2242/2260) with PCIe x1 for SSD

Memory

Technology: Dual Channel DDR4 2400/ 2666 MHz
Max.: 32GB
Socket: 2 x SO-DIMM

Graphics

Controller: Intel® HD Graphics (By CPU)
VRAM: N/A
VGA: Supports max resolution up to 1920x1200@60Hz
DVI: N/A
LVDS: Supports max resolution up to 1920x1200@60Hz
HDMI: N/A
DisplayPort: Supports max resolution up to 4096x2304@60Hz
MultiDisplay: Yes (Triple Display)
eDP: N/A

Ethernet

Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel® I219LM, 1 x Realtek RTL8111H
Connector: 2 x RJ45

Storage

SATA: 4 x SATA3 (6.0Gb/s)

Rear I/O

VGA: 1
DVI: N/A
HDMI: N/A
DisplayPort: 2
Ethernet: 2
USB: 4 x USB 3.1
Audio: 2 (Mic-in, Line-out)
Serial:  2x COM(RS-232/422/485)
PS2: N/A

Internal Connector

USB: 4 x USB2.0
LVDS: 1
VGA: 1
Serial: 3 x COM(RS-232)
SATA: 4 x SATA3 (6.0Gb/s)
GPIO: 4 x GPI, 4 x GPO
SATA PWR Outpu: N/A
Speaker Header:
1
TPM:
1 x Onboard IC




Watchdog Timer

Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min

Power Requirements

Input PWR: ATX PWR (4 + 24)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Temperature: 0ºC – 60ºC

Повече информация
Производител Asrock IPC
Кат. номер MBASRIPCIMB1211L-1
Процесор Core i7/i5/i3/Celeron® (Supports up to 65W)
Охлаждане Активно
CPU Сокет LGA1151
Чипсет Intel® Q370
Вид памет DDR4 SODIMM
Брой слотове за памет 2 слота
Макс. поддържана RAM 32 GB
Интегрирано видео Intel® HD Graphics (By CPU)
Видео Изходи VGA, Displayport
Мулти Дисплей Три дисплея
Звук Realtek ALC887, High Definition Audio. Line-out,Mic-in
Мрежова карта LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
LAN портове 2 Порта
Разширителни слотове PCIe16x, M.2 2230, Mini PCIe (Half/Full )
PS2 портове N/A
Брой Sata портове 2 Порта
Брой USB 2.0 портове (Заден I/O + Разширения) 2+2
Брой USB 3.x портове (Заден I/O + Разширения) 2+2
LPT (Паралелен) порт Не
RS 232 (серийни) портове 2 порта
Допълнителни функции RS232/422/485, GPIO, TPM Header
Поддържани ОC Windows 7, Windows 8/8.1, Windows 10
Форм фактор Mini-ITX
