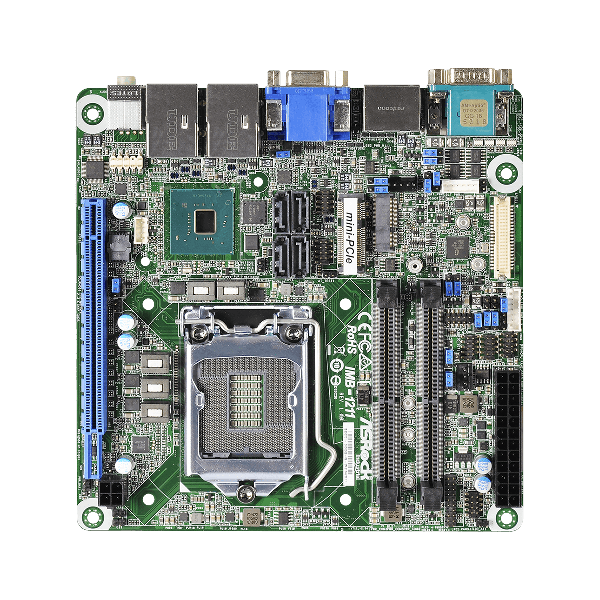

ASRock IMB-1211L/ Q370, 2x LAN, 5x COM, Mini-ITX

Form Factor

• Dimensions - Mini-ITX (6.7-in x 6.7-in)



Processor System

• CPU - Socket LGA 1151 for Intel^® Core i7/i5/i3/Celeron^® (Supports up to 65W)
• Chipset- Intel^® Q370



Expansion Slot

• PCIe - 1 xPCIe x16 (Support riser card)
• Mini-PCIe - 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
• mSATA- N/A
• M.2 - 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
         - 1x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD



Memory

• Technology - Dual Channel DDR4 2400/2666 MHz
• Max. - 32 GB
• Socket - 2 x SO-DIMM



Graphics

• Controller - Intel^® HD Graphics (By CPU)
• VGA - Supports max resolution up to 1920x1200@60Hz
• DVI - N/A
• LVDS - Supports max resolution up to 1920x1200@60Hz
• HDMI - N/A
• DisplayPort - Supports max resolution up to 4096x2304@60Hz
• MultiDisplay - Triple Display
• eDP - N/A



Ethernet

• Ethernet - 10/100/1000 Mbps
• Controller - 1 x Intel^® I210, 1 x Intel^® I219LM



Rear I/O

• VGA - 1
• HDMI - N/A
• DisplayPort - 2
• Ethernet - 2
• USB - 4 x USB 3.1
• Audio - 2 (Mic-in, Line-out)
• Serial - 2 x COM (RS-232/424/485)
• PS2 - N/A



Internal Connector

• USB - 4 x USB 2.0
• LVDS / inverter - 1
• eDP - N/A
• VGA - N/A
• Serial - 3 x COM(RS-232)
• SATA - 4 x SATA3 (6.0Gb/s)
• GPIO - 4 x GPI, 4 x GPO
• SATA PWR Output - N/A
• Speaker Header - 1
• TPM - 1 x Onboard TPM 2.0 IC



Watchdog Timer

• Output - From super I/O to drag RESETCON#
• Interval - 256 Segments, 0,1,2…255 Sec



Power Requirements

• Input PWR - ATX PWR 24 + 4
• Power On - AT/ATX Supported
                     AT: Directly PWR on as Power input ready
                     ATX: Press Button to PWR on after Power input ready
