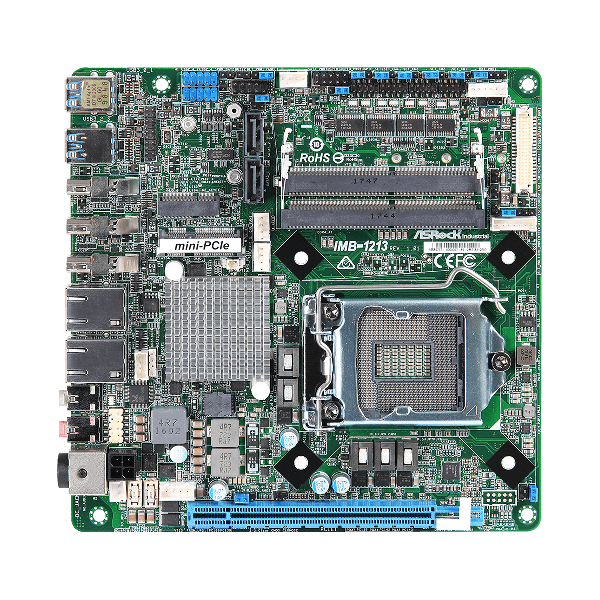

ASRock IMB-1213/ 2x LAN, 4 x COM, Mini-ITX
Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron
Supports Dual Channel DDR4 SO DIMM 2400/2666, up to 32GB
3 x Displayport, 1 x eDP, 1 x Dual Channel 24-bit LVDS
4 x USB 3.1, 4 xUSB 2.0, 2 x SATA3, 4 x COM
1 x PCIe x16, 1 x mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
2 x Intel® LAN
1 x TPM 2.0 IC
12V/19~28V 4-pin DC-in
Supports RAID function
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)
Chipset: Intel® Q370
BIOS: UEFI
Expansion Slot
PCIe: 1 xPCIe x16 (Support riser card)
PCI: N/A
Mini-PCIe: 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2:
- 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1x M.2 (Key M, 2242/ 2280) with PCIe x4 and SATA3 for SSD
Memory
Technology: Dual Channel DDR4 2400/ 2666 MHz
Max.: 32GB
Socket: 2 x SO-DIMM
Graphics
Controller: Coffee Lake integrated graphics
VRAM: N/A
VGA: Supports max resolution up to 1920x1200@60Hz
DVI: N/A
LVDS: Supports max resolution up to 1920x1200@60Hz
HDMI: N/A
DisplayPort: Max resolution up to 4096x2304@60Hz
MultiDisplay: Yes (Triple Display)
eDP: Max resolution up to 4096x2304@60Hz
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel® I219LM, 1 x Realtek RTL8111H
Connector: 2 x RJ45
Storage
Rear I/O
VGA: N/A
DVI: N/A
HDMI: N/A
DisplayPort: 3
Ethernet: 2
USB: 4 x USB 3.1
Audio: 2 (Mic-in, Line-out)
Serial: N/A
PS2: N/A
Internal Connector
USB: 4 x USB2.0
LVDS: 1
VGA: N/A
Serial: 2 x COM (RS-232/422/485), 2 x COM(RS-232)
SATA: 2 x SATA3 (6.0Gb/s)
GPIO: 4 x GPI, 4 x GPO
SATA PWR Outpu: 1
Speaker Header: 1
TPM: 1 x Onboard IC
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: 12V/19~28V 4-pin DC-in
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature: 0ºC – 60º
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB1213 |
| Процесор | Intel® Core i7/i5/i3/Celeron® (Supports up to 65W) |
| Охлаждане | Активно |
| CPU Сокет | LGA1151 |
| Чипсет | Intel® Q370 |
| Вид памет | DDR4 DIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | Coffee Lake integrated graphics |
| Видео Изходи | Displayport, eDP, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887, High Definition Audio. Line-out,Mic-in |
| Мрежова карта | LAN1: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro, LAN2: 1 x Intel® I210 with 10/100/1000 Mbps |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe16x, M.2 2230, M.2 2242, Mini PCIe (Half/Full ) |
| PS2 портове | N/A |
| Брой Sata портове | 2 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 2+2 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 2+2 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 2 порта |
| Допълнителни функции | RS232/422/485, GPIO, TPM Header, Onboard TPM |
| Захранване | 12V DC |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10 |
| Форм фактор | Mini-ITX |
