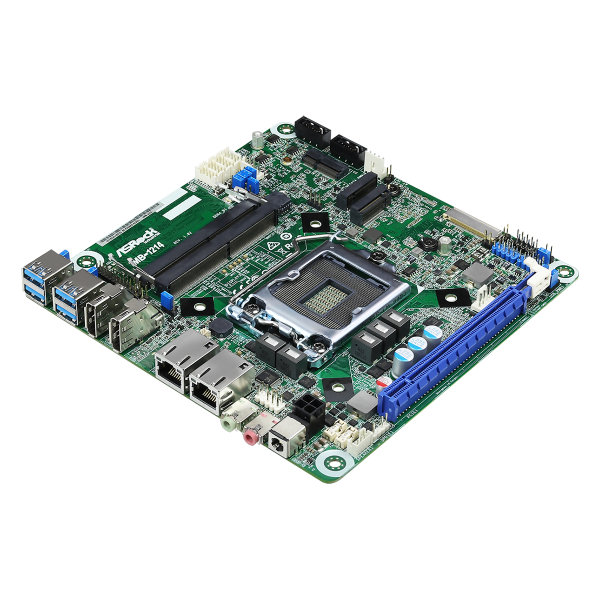

ASRock IMB-1214/ 2x LAN, 4 x COM, Mini-ITX

Form Factor

Dimensions: Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU: Socket LGA 1151 for Intel^® Core i7/i5/i3/Celeron^® (Supports up to 65W)
Chipset: Intel^® Q370
BIOS: UEFI

Expansion Slot

PCIe: 1 xPCIe x16 (Support riser card)
PCI: N/A
Mini-PCIe: 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2:
- 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1x M.2 (Key M, 2242/ 2280) with PCIe x4 and SATA3 for SSD
- 1x M.2 (Key M, 2242/2260) with PCIe x1 for SSD

Memory

Technology: Dual Channel DDR4 2400/ 2666 MHz
Max.: 32GB
Socket: 2 x SO-DIMM

Graphics

Controller: Coffee Lake integrated graphics
VRAM: N/A
VGA: N/A
DVI: N/A
LVDS: N/A
HDMI: N/A
DisplayPort: Max resolution up to 4096x2304@60Hz
MultiDisplay: Yes (Dual Display)
eDP: Max resolution up to 4096x2304@60Hz

Ethernet

Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel^® I219LM, 1 x Realtek RTL8111H
Connector: 2 x RJ45

Storage

Rear I/O

VGA: N/A
DVI: N/A
HDMI: N/A
DisplayPort: 2 x DP
Ethernet: 2
USB: 4 x USB 3.1
Audio: 2 (Mic-in, Line-out)
Serial:  N/A
PS2: N/A

Internal Connector

USB: 4 x USB2.0
LVDS: N/A
VGA: N/A
Serial: 1 x COM(RS232/422/485), 3 x COM(RS-232)
SATA: 2 x SATA3 (6.0Gb/s)
GPIO: N/A
SATA PWR Outpu: 1
Speaker Header: 1
TPM: 1 x Onboard IC

Watchdog Timer

Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min

Power Requirements

Input PWR: 19V DC-in (DC Jack/4-pin ATX PWR Con)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Temperature: 0ºC – 60º
