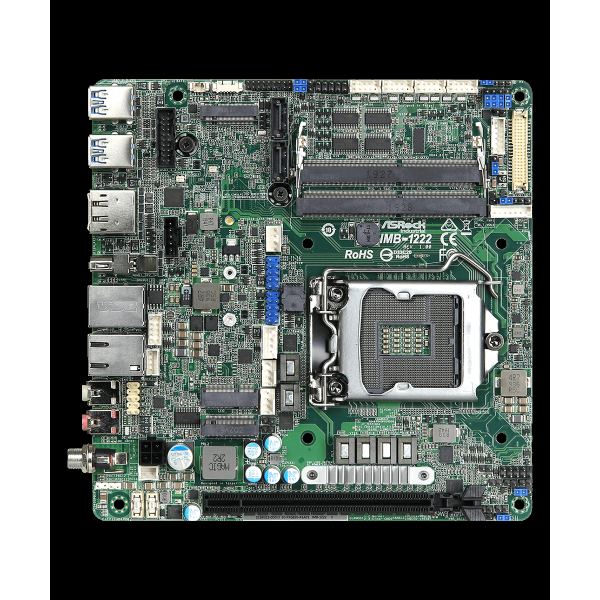

ASRock IMB-1222/ Q470E, 2x LAN, 4x COM, Mini-ITX
- Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
- 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
- 1 x PCIe x16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
- 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
- Support Triple display, 2 x DP 1.2, 1 x LVDS or eDP, 1 x HDMI 2.0a
- TPM 2.0 onboard
- Special Feature: Supports Intel® vPro, AMT, RAID 0/1/5/10
- DC-in 12V
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.0-in) |
|---|
Processor System
| CPU | Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W *The performance of CPUs over 80W will be limited due to power design. |
|---|---|
| Chipset | Intel® Q470E |
| Socket | LGA1200 |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160@60Hz |
| eDP | eDP 1.4, Max resolution up to 4096 x 2304@60Hz |
| MultiDisplay | Triple Display |
| HDMI | HDMI 2.0a, Max resolution up to 4096 x 2160 @60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB2.0 and SIM for 4G / 5G |
| SIM Socket | N/A (BOM option support) |
Audio
| Interface | Realtek ALC887 HD , High Definition Audio. Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| DisplayPort | 2 x DP 1.2 |
|---|---|
| Ethernet | 1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN |
| USB | 4 x USB 3.2 Gen1 |
| Audio | 2 (Mic-in, Line-out) |
| HDMI | 1 x HDMI 2.0a |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 4 x USB 2.0 (2 x 2.54 pitch header |
|---|---|
| COM | COM1, 2 (RS-232/422/485), COM3, 4 (RS-232 only) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard |
| LVDS | 1, switch by BIOS default LVDS |
| eDP | 1, switch by BIOS default LVDS |
| Speaker Header | 1 |
| SATA PWR Output | 1 |
| Thunderbolt header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x4 or SATA3 |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel® SATA RAID 0/1/5/10 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V DC-in with 4 pin plug PWR cable or DC Jack (Screw type) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB1222 |
| Процесор | Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W *The performance of CPUs over 80W will be limited due to power design |
| Охлаждане | NA |
| CPU Сокет | 1200 |
| Чипсет | Intel® Q470E |
| Вид памет | DDR4 DIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 64 GB |
| Интегрирано видео | Intel® UHD Graphics |
| Видео Изходи | HDMI, Displayport, eDP, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887 HD , High Definition Audio. Line-out, Mic-in |
| Мрежова карта | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, LAN2: Intel® I219LM with 10/100/1000 Mbps, support AMT / vPro |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe16x, M.2 2230 |
| PS2 портове | N/A |
| Брой Sata портове | 2 Порта |
| LPT (Паралелен) порт | Не |
| Захранване | 12V DC |
| Поддържани ОC | Windows 10 |
| Форм фактор | Mini-ITX |
