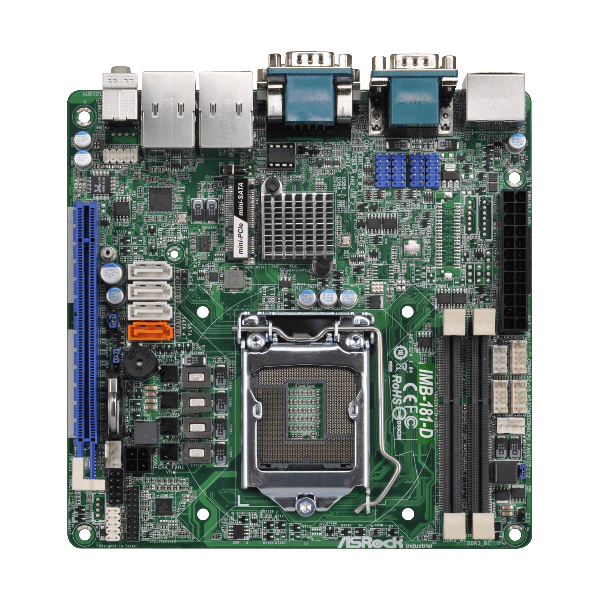

ASRock IMB-181-D/ Q87, 6x RS232, 2x Lan, Mini-ITX
Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
Intel® Q87 Chipset
Integrated Intel® HD Graphics Built-in Visuals
2 x DDR3 SO-DIMM, up to 16GB system memory
3 x COM (RS-232/422/485), 3 x COM (RS-232)
1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel DisplayPort
4 x USB 3.0, 8 x USB 2.0,4 x SATA3
1 x mini-PCIe, 1 x PCIe (x16),
Gigabit LAN : 1 x Intel® I217LM (with v-Pro support), 1 x Intel® I210
1 x TPM Header
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
Core Number: (By CPU, Max 4)
L2 Cache: (By CPU)
Chipset: Intel® Q170
BIOS: UEFI
Expansion Slot
PCIe: 1 x PCIe x16
Mini-PCIe: 1 (Full Size) shared with m-SATA
mSATA: 1 (shared with mini-PCIe)
Memory
Technology: Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max.: 16GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® HD Graphics (By CPU)
VRAM: Shared Memory
VGA: Supports max resolution up to 2048x1536
DVI: Yes
LVDS: No
HDMI: Supports HDMI, max resolution up to 1920x1200
DisplayPort: Supports max resolution up to 2560x1600
MultiDisplay: Yes (Three Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: GbE LAN1:Intel® I210, LAN2: Intel® I217LM (with v-Pro support)
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
Rear I/O
VGA: 0
DVI: 1 (DVI-I)
HDMI: 1
DisplayPort: 1
Ethernet: 2
USB: 4 (USB 3.0)
Audio: 2 (Mic-in, Line-out)
Serial: 3 (RS-232/422/485)
PS2: 0
Internal Connector
USB: 8 (4 x USB Header 2.54mm pitch)
LVDS / inverter: 0
VGA: 0
Serial: 3 (RS-232)
SATA: 4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
mPCIe: 1 (shared)
Parallel: 0
mSATA: 1 (shared)
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 0
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: ATX PWR (4 + 24)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp: 0ºC ~ 60ºC
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB181D |
| CPU Сокет | LGA1150 |
| Процесор | Intel® Core i7 / i5 / i3 / Celeron® (Haswell) |
| Чипсет | Intel® Q87 Chipset |
| Вид памет | DDR3 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 16 GB |
| Интегрирано видео | Integrated Intel® HD Graphics Built-in Visuals |
| Видео Изходи | VGA, HDMI, Displayport |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887 |
| Мрежова карта | GbE LAN1:Intel® I210, LAN2: Intel® I217LM (with v-Pro support) |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe x16, mSata Support, Mini PCIe (Half Size) |
| PS2 портове | N/A |
| Брой Sata портове | 4 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 0+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 4+4 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | NA |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, TPM Header |
| Захранване | ATX |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10 |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24 M |
