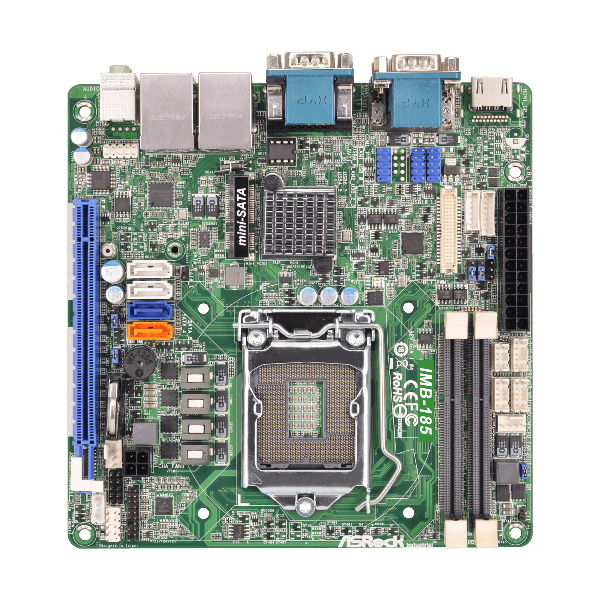

ASRock IMB-185/ H81, 2x LAN, 6x Com, Mini-ITX
Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
Intel® H81 Chipset
Integrated Intel® HD Graphics Built-in Visuals
2 x DDR3 SO-DIMM, up to 16GB system memory
3 x COM (RS-232/422/485), 3 x COM (RS-232)
1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
2 x USB 3.0, 8 x USB 2.0,2 x SATA3,2 x SATA2
1x mSATA, 1 x PCIE (x16),
Gigabit LAN: 1 x Intel® I210,LAN2: 1 x Intel® I217V
1 x TPM Header
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
Core Number: (By CPU, Max 4)
Max Speed: (By CPU)
L3 Cache: (By CPU)
Chipset: H81
BIOS: UEFI
Expansion Slot
PCIe: 1 (x16)
PCI: N/A
Mini-PCIe: N/A
mSATA: 1
CFast Card Socket: 0
Memory
Technology: Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Max.: 16GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® HD Graphics (By CPU)
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Yes
HDMI: Supports HDMI, max resolution up to 4096x2304
DisplayPort: No
MultiDisplay: Yes (Dual Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: GbE LAN1:Intel® I210, LAN2: Intel® I217V (w/o v-Pro support)
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA2 (3.0Gb/s), SATA3 (6.0Gb/s)
Rear I/O
VGA: 1
DVI: 0
HDMI: 1
DisplayPort: 0
Ethernet: 2
USB: 4 (2 x USB 3.0, 2 x USB 2.0)
Audio: 3 (RS-232/422/485)
eSATA: 0
PS2: 0
Internal Connector
USB: 6 (3 x USB Header 2.54mm pitch)
LVDS / inverter: 24 bit dual channel LVDS
VGA: 0
Serial: 3 (RS-232)
SATA: 2 x SATA3 (6.0Gb/s), 2 x SATA2 (3.0Gb/s)
mPCIe: 0
Parallel: 0
mSATA: 1
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 1
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: ATX PWR (4 + 24)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature: 0ºC – 60ºC
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB185 |
| CPU Сокет | LGA1150 |
| Процесор | Intel® Core i7 / i5 / i3 / Celeron® (Haswell) |
| Чипсет | Intel® H81 Express |
| Вид памет | DDR3 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 16 GB |
| Интегрирано видео | Integrated Intel® HD Graphics Built-in Visuals |
| Видео Изходи | VGA, HDMI, LVDS |
| Мулти Дисплей | Два дисплея |
| Звук | Realtek ALC887 |
| Мрежова карта | GbE LAN1:Intel® I210, LAN2: Intel® I217V (w/o v-Pro support) |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe x16, mSata Support |
| PS2 портове | N/A |
| Брой Sata портове | 4 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 2+6 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 2+0 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 6 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, TPM Header |
| Захранване | ATX |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10 |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24 M |
