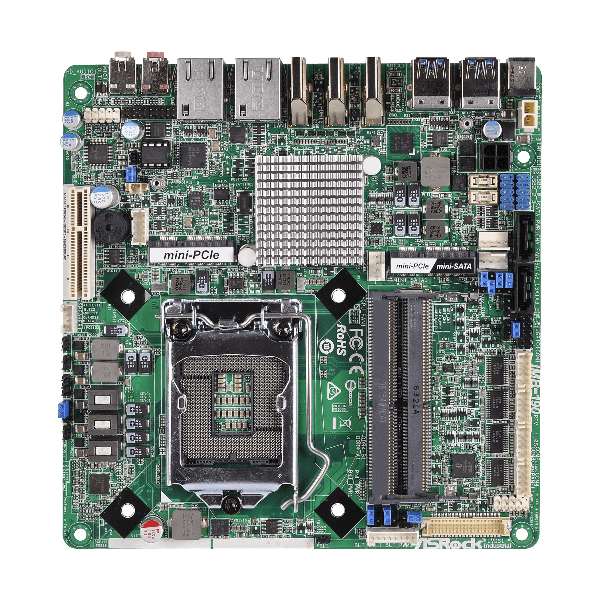

ASRock IMB-190/ Q170, 3x HDMI, DC-IN, Thin Mini-ITX
Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
2 x DDR4 SO-DIMM, up to 32GB system memory
3 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
Gigabit LAN : 2 x Intel® Lan
1 x TPM Header
12V / 19~24V DC-in
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
Core Number: (By CPU, Max 4)
Max Speed: (By CPU)
L3 Cache: (By CPU)
Chipset: Q170
BIOS: UEFI
Expansion Slot
PCIe: 1 x PCIe x4 slot
Mini-PCIe: 2 x Mini-PCIe (1 x full size colay with mSATA, 1 x half size, both with USB signal)
mSATA: 1 (colay with full size Mini-PCIe)
Memory
Technology: Dual Channel DDR4 2133 MHz SDRAM
Max.: 32G
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Dual channel 24-bit co-lay with eDP, max resolution up to 1920x1200@60Hz
HDMI:
- HDMI1: Supports HDMI, max resolution up to 4096x2160@60Hz
- HDMI2, 3: Supports HDMI, max resolution up to 4096x2160@30Hz
DisplayPort: No
MultiDisplay: Yes (Triple Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel® i210 , 1 x Intel® i219LM
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
Rear I/O
VGA: 0
DVI: 0
HDMI: 3
DisplayPort: 0
Ethernet: 2
USB: 4 x USB 3.0
Audio: 2 (Mic-in, Line-out)
Serial: 0
eSATA: 0
PS2: 0
Internal Connector
USB: 4 (2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter: 1/1
VGA: 1
Serial: 4 x RS-232 (COM1, 2 support RS-232/422/485)
SATA: 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
mPCIe: 2
Parallel: 0
mSATA: 1
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 1
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: 12V or 19~24V DC-in (DC Jack or 4-pin ATX PWR Con)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature: 0ºC – 60ºC
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB190 |
| CPU Сокет | LGA1151 |
| Процесор | Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S) & Kaby Lake CPU since BIOS ver. P1.20 |
| Чипсет | Intel® Q170 Chipset |
| Вид памет | DDR4 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4 |
| Видео Изходи | 3x HDMI, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887 |
| Мрежова карта | 1 x Intel® i210 , 1 x Intel® i219LM |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe 4x, 2x Mini PCIe (1x Half, 1x Full Size), mSata Support |
| PS2 портове | N/A |
| Брой Sata портове | 2 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 0+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 4+0 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 4 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, TPM Header |
| Захранване | 12V DC or 19~24 DC |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10, Linux |
| Форм фактор | Thin-Mini-ITX |
| Гаранция, месеци | 24 M |
