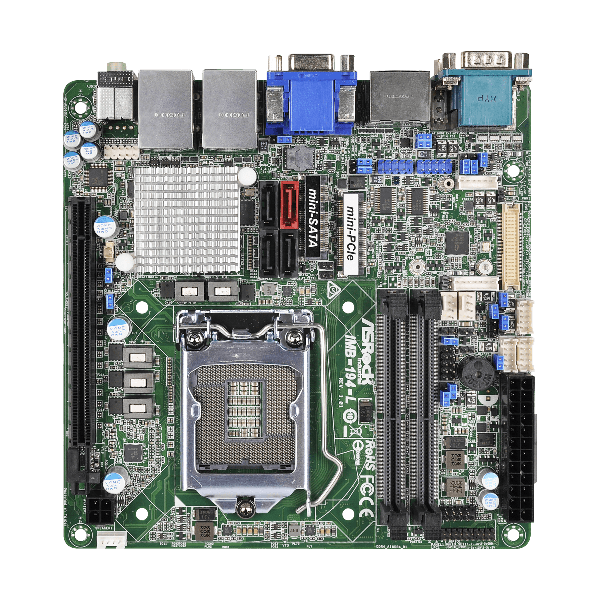

ASRock IMB-194-L/ Q170, 5x RS232, RAID, Mini-ITX
Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
2 x DDR4 SO-DIMM, up to 32GB system memory
1 x VGA, 1 x HDMI, 1 x Displayport , 1 x LVDS
4 xUSB 3.0, 4 x USB 2.0, 4 x SATA3
1 x Mini-PCIe, 1 x PCIe x16, 1 x mSATA
Gigabit LAN : 2 x Intel® LAN
1 x TPM 2.0 IC onboard
ATX PWR Con (24+4-pin)
Supports RAID 0, 1, 5, 10
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
Core Number: (By CPU, Max 4)
L2 Cache: (By CPU)
Chipset: Intel® Q170
BIOS: UEFI
Expansion Slot
PCIe: 1 x PCIe x16
Mini-PCIe: 1 (half/full size, supports PCIe x1 and USB device)
mSATA: 1 (full size, shared SATA and USB device)
Memory
Technology: Dual Channel DDR4 2133 MHz
Max.: 32GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Supports max resolution up to 1920x1200@60Hz
HDMI: Supports max resolution up to 4096x2160@30Hz
DisplayPort: Supports max resolution up to 4096x2160@60Hz
MultiDisplay: Yes (Triple Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel® I219LM, 1 x Intel® I210
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA3 (6.0Gb/s)
Rear I/O
VGA: 1
DVI: 0
HDMI: 1
DisplayPort: 1
Ethernet: 2
USB: 4 x USB 3.0
Audio: 2 (Mic-in, Line-out)
Serial: 2 x COM (RS-232/422/485)
PS2: 0
Internal Connector
USB: 4 x USB 2.0 (2 x 2.54 pitch header)
LVDS / inverter: 1/1
eDP: 0
VGA: 0
Serial: 3 x COM (Supports RS-232 only)
SATA: 4
mPCIe: 1
Parallel: 0
mSATA: 1
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 0
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: ATX PWR Con (24+4-pin)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp: 0ºC ~ 60ºC
| Производител | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB194L |
| CPU Сокет | LGA1151 |
| Процесор | Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S) & Kaby Lake CPU since BIOS ver. P1.30 |
| Чипсет | Intel® Q170 Chipset |
| Вид памет | DDR4 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4 |
| Видео Изходи | VGA, HDMI, Displayport, LVDS |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887 |
| Мрежова карта | 1 x Intel® I219LM, 1 x Intel® I210 |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe x16, mSata Support, Mini PCIe (Half Size) |
| PS2 портове | N/A |
| Брой Sata портове | 4 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 0+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 4+0 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 5 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, GPIO, Onboard TPM |
| Захранване | ATX |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10, Linux |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24 M |
