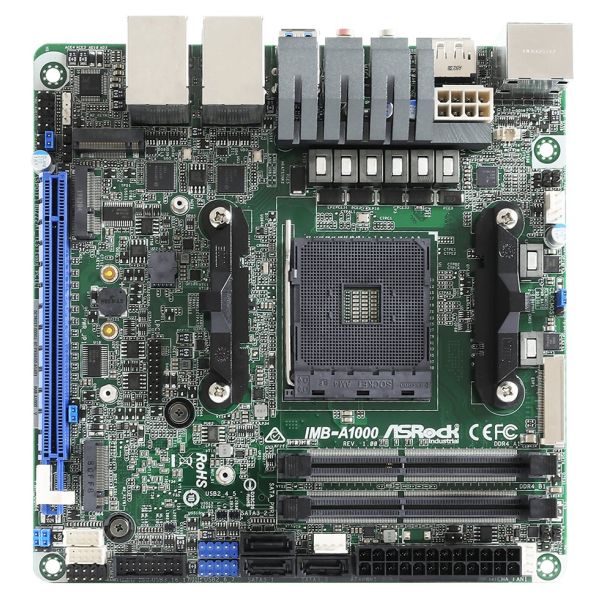

ASRock IMB-A1000/ B450, 2x RS232, 2x LAN, ATX, Mini-ITX
- AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors with B450 chipset
- 2 x 204-pin SO-DIMM up to 32GB DDR4 3200 MHz (16GB per DIMM)
- 1 x PCIe x16 (Gen3), 6 x USB 3.1 Gen2, 2 x USB 3.1 Gen1, 4 x USB 2.0 with Matisse/Renoir/Vermeer/Cezanne CPU
- 1 x PCIe x16 (Gen3), 2 x USB 3.1 Gen2, 6 x USB 3.1 Gen1, 4 x USB 2.0 with Raven Ridge CPU
- 2 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 2 x COM, 3 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports Triple display, 3 x DP++ 1.2, 1 x eDP
- TPM 2.0 onboard IC
- Support RAID 0/1
- ATX PWR (24+8-pin)
Processor System
CPU: AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors
Ryzen 7th: Matisse (3700X,8cores,3.6GHz,65W)
Ryzen 5th: Raven Ridge (2400G, QC, 3.6GHz,65W); Matisse (3600,6cores,3.6GHz,65W)
Ryzen 3th: Raven Ridge (2200G, QC,3.5GHz,65W )
Chipset: AMD Promontory B450
Socket: AM4
BIOS: AMI SPI 256 Mbit
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
Memory
Technology: Dual Channel DDR4 3200 MHz
Capacity: 32 GB (16 GB per DIMM)
Socket: 2 x 204-pin SO-DIMM
Graphics
Controller: AMD Radeon™ HD Vega DirectX 12
DisplayPort: DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
eDP: eDP 1.4 (share with DP2) Max resolution up to 4096x2160@60Hz
MultiDisplay: Triple Display
Expansion Slot
PCIe: 1 x PCIe x16 (PCIe Gen3 x8 for Raven Ridge), 1 x PCIe x16 (PCIe Gen3 x16 for Matisse)
M.2: 1 x Key B (3042) with PCIe, USB 2.0 and SIM Socket for 4G, 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket: 1 x Socket connected to M.2 Key_B
Audio
Interface: Realtek ALC887, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed: 2 x Intel® I210AT with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O
DisplayPort: 3 x DP 1.2++
Ethernet: 2 x 1 Gigabit LAN
USB: 4 x USB 3.1 GEN 2 (form Matisse/Renoir/Vermeer/Cezanne CPU for 2 LAN connectors)
4 x USB 3.1 GEN 1 (form Raven ridge CPU for 2 LAN connectors)
2 x USB 3.1 GEN 2 (form chipset for dual stack)
Audio: 2 (Mic-in, Line-out)
Internal Connector
USB: 2 x USB 3.1 Gen1 (1 x USB 3.1 header), 4 x USB 2.0 (2 x 2.54 pitch header)
COM: 2 x COM (RS232/422/485)
TPM: TPM 2.0 onboard IC
LVDS: N/A
eDP: 1 (share with DP2), * Only supports 3V LCD_VCC and 12V Backlight power to eDP panel
SATA PWR Output: 1
Speaker Header: 1
Storage
M.2: 1 x Key M (2242/2260/2280) with PCIe x4 and SATA3 for SSD, 1 x Key M (2242/2280) with PCIe x1 for SSD
SATA: 3 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
RAID: SATA RAID 0/1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR: ATX PWR (24+8-pin)
Power On: AT/ATX Supported
Environment
Operating Temp: 0ºC ~ 60ºC
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
| Производител | Asrock IPC |
|---|---|
| SKU | ASRIPCIMBA1000 |
| CPU Сокет | Socket AM4 |
| Процесор | AMD Ryzen 7th/5th/3th Gen (Raven Ridge/Matisse) Core™ Processors Ryzen 7th: Matisse (3700X,8cores,3.6GHz,65W) Ryzen 5th: Raven Ridge (2400G, QC, 3.6GHz,65W); Matisse (3600,6cores,3.6GHz,65W) Ryzen 3th: Raven Ridge (2200G, QC,3.5GHz,65W ) |
| Чипсет | AMD Promontory B450 |
| Вид памет | DDR4 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 32 GB |
| Интегрирано видео | AMD Radeon™ HD Vega DirectX 12 |
| Видео Изходи | DisplayPort 1.2a, eDP |
| Мулти Дисплей | Три дисплея |
| Звук | Realtek ALC887, High Definition Audio. Line-out, Mic-in |
| Мрежова карта | Intel® I210AT with 10/100/1000 Mbps |
| LAN портове | 2 Порта |
| Разширителни слотове | SIM socket connected to M.2 key B, 1 x PCIe x16 (PCIe Gen3 x8 for Raven Ridge), 1 x PCIe x16 (PCIe Gen3 x16 for Matisse), 1 x Key B (3042) with PCIe, USB 2.0 and SIM Socket for 4G, 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless |
| PS2 портове | N/A |
| Брой Sata портове | 3 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 0+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 6+2 |
| LPT (Паралелен) порт | Не |
| RS 232 (серийни) портове | 2 порта |
| Допълнителни функции | RS232/422/485, Watchdog Timer, Onboard TPM, SATA PWR Output , Speaker Header |
| Захранване | ATX |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24M |
