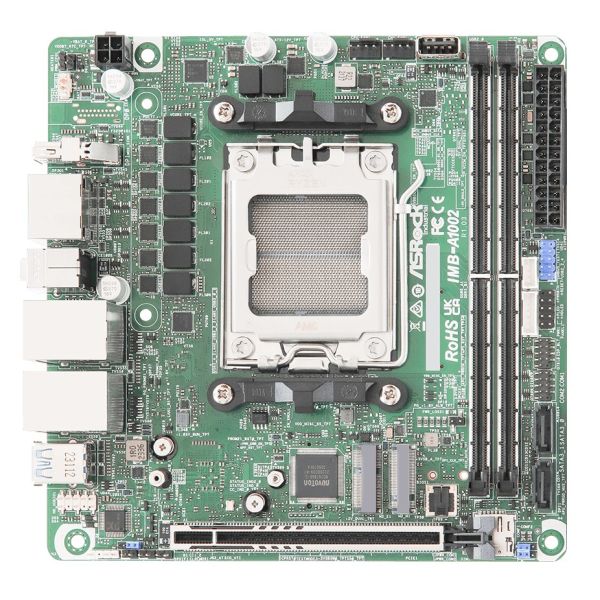

ASRock IMB-A1002/ B650, 2x RS232, 2x LAN, ATX, Mini-ITX

Processor System

CPU: AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Desktop Processors*, up to 65W
*The availability of expansion slots may vary by CPU. Please refer to PCIe Bandwidth Table for details.
https://download.asrock.com/IPC/Others/AM5_PCIe_Bandwidth_Table.pdf
Chipset: AMD B650
Socket: AM5
BIOS: AMI SPI 256 Mbit

Form Factor

Dimensions: Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.7 cm)

Memory

Technology: Dual Channel ECC/non-ECC DDR5 5200 MHz, *ECC support may vary by CPU
Capacity: 96GB (48GB per DIMM)
Socket: 2 x 288-pin Long-DIMM

Graphics

Controller: AMD RDNA™ 2 Architecture
DisplayPort: DisplayPort 1.2, DP++, Max resolution up to 4096x2160@60Hz
eDP: eDP 1.4b, Max resolution up to 4096x 2160@60Hzv
MultiDisplay: Quad Display

Expansion Slot

PCIe: 1 x PCIe x16 (Gen5)
M.2: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless, 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.0, USB 2.0 and SIM Socket for 4G/5G
SIM Socket: 1 x Socket connected to M.2 Key B

Audio

Interface: Realtek ALC897, High Definition Audio. Mic-in, Line-out

Ethernet

Controller/ Speed: LAN1: Realtek RTL8111H with 10/100/1000 Mbps, LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector: 2 x RJ-45

Rear I/O

DisplayPort: 3 x DP 1.2
Ethernet: 2 x 1 Gigabit LAN
USB: 6 x USB 3.2 Gen2
Audio: 2 (Mic-in, Line-out)

Internal Connector

USB: 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM: COM1, COM2 (RS-232/422/485)
eDP: 1

Security

TPM: TPM 2.0 onboard IC

Storage

M.2: 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4, SATA3 and USB 2.0
SATA: 2 x SATA3 (6Gb/s)

Watchdog Timer

Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR: ATX PWR (24+4-pin)
Power On: AT/ATX Supported

Environment

Operating Temp: -20ºC ~ 70ºC
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
