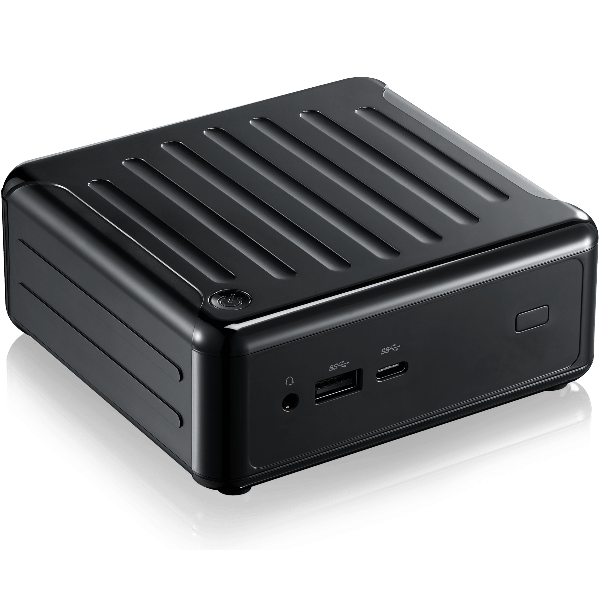

ASRock NUC BOX N3010 Fanless Barebone PC
Powered by the Intel® N3010 Series Processor Family
Dual Channel DDR3L SO-DIMM (Max. 16GB)
Supports two storage devices for added flexibility (1 x 2.5" SATA3 HDD + 1 x mSATA)
Supports Triple Monitor (2 x HDMI, 1 x DisplayPort)
Smooth and ultra high resolution 4K/2K playback
The world's first NUC paired with an USB Type-C port
Offers rich features in a tiny 0.6L package
Processor System
CPU: Intel® Braswell N3010
Memory: Supports DDR3L 1600 / 1066MHz, 2 x SO-DIMM slots, Max 16GB
Chipset: Intel® Braswell SoC
Graphics: Intel® Gen8
LAN Chipset:
- Realtek RTL8111G x 1
- 1 x Intel® Wifi 802.11ac/BT4.0 VIA® M.2 interface (Optional)
Watch Dog: N/A
Storage
Type: 1 x Full size mSATA or 1 x 2.5 inch HDD
Rear I/O
HDMI: 2 x HDMI
DisplayPort: 1 x DP
Ethernet: 1 RJ45 Port Gbe
USB: 3 x USB 3.0, 1 x USB 3.0(Type C)
Audio: Line out/Mic-in
Serial: N/A
Expansion: 1 x M.2 slot /1 x mSATA
Environment
Operating Temp: 0ºC - 40ºC
Storage Temp: -20ºC ~ 80ºC
Humidity: 10% ~ 90%
Mechanical
Material: Plastic chassis
Dimension: 118.5 x 110 x 46mm
Weight: 510g
Mounting: Bracket included , supports 75 x 75 and 100 x 100 mm
Others
OS Support: Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 64-bit / 7 64-bit compliant
Certifications: CE/FCC/BSMI/C-tick
Packing List
- VESA Bracket
- VESA Bracket Screws
- QIG
- Driver CD
- 36W Power adapter
- Power adapter plug
- SATA/SATA Power cable
| Производител | Asrock IPC |
|---|---|
| SKU | ASRIPCNUCBOXN3010 |
| Процесор | Intel® Celeron® Processor N3010 (2M Cache, up to 2.24 GHz) |
| Охлаждане | Пасивно |
| Графична Карта | Intel® HD Graphics Gen8 |
| Мулти Дисплей | Три дисплея |
| RAM памет | 2x DDR3L SODIMM |
| Поддържани дискове | 1x 2,5" drive bay, 1x mSATA |
| Дисково пространство | Конфигурируемо |
| Звук | Realtek ALC283 |
| Преден и странични I/O панели | 1x USB 3.0 (Type A), 1x USB 3.0 (Type C), IR Remote Receiver, Audio Out/Mic In Jacks |
| Заден I/O панел | DC In, 2x USB 3, 1x LAN, 1x DP, 2x HDMI |
| Lan | Gbit Lan |
| Допълнителни функции |
|
| Безжична комуникация | NA |
| Операционна система | Няма |
| Цвят | Черен |
| Размери | 110mm (W) x 46mm (H) x 118.5mm (L) |
| Гаранция, месеци | 36 M |
