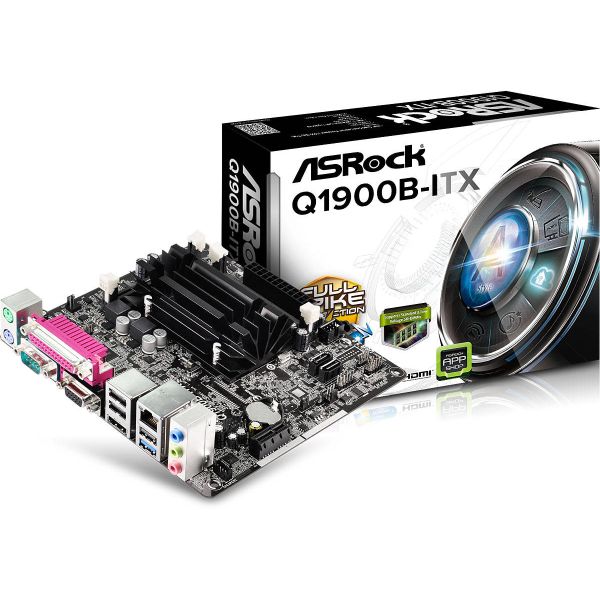

ASRock Q1900B-ITX, Bay Trail, Mini-ITX
Intel® Quad-Core Processor J1900
Solid Capacitor for CPU power
2 x DDR3/DDR3L SO-DIMM Slots, Up to 8 GB
Built-in Intel® 7th generation (Gen 7) graphics
1 x Printer Port, 1 x COM Port, 1 x COM Port Header
Realtek Gigabit LAN
Mini-ITX Motherboard
Unique Feature
- ASRock Full Spike Protection
- ASRock Cloud
CPU
- Intel® Quad-Core Processor J1900 (2 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
**If only one SO-DIMM module is installed, please install it into DDR3_A1.
BIOS
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 Support
Graphics
- Intel® 7th generation (Gen 7) graphics
- DirectX 11.0, Pixel Shader 5.0
- Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Slots
- 1 x PCI Express 2.0 x1 Slot
Storage
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x 3W Audio AMP Output Wafer Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software
- ASRock A-Tuning
- ASRock APP Shop
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI
UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor
- Solid Capacitor for CPU power
- High Density Glass Fabric PCB
OS
- Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Производител | Asrock |
---|---|
SKU | 90-MXGTR0-A0UAYZ |
Процесор | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) |
Охлаждане | Пасивно |
CPU Сокет | FCBGA1170 |
Чипсет | Intel® Bay Trail SoC |
Вид памет | DDR3L SODIMM |
Брой слотове за памет | 2 слота |
Макс. поддържана RAM | 8 GB |
Интегрирано видео | 7th Generation Intel® HD Graphics DX 11, OGL3.2 |
Видео Изходи | VGA, HDMI |
Мулти Дисплей | Два дисплея |
Звук | Realtek ALC662 |
Мрежова карта | Realtek RTL8111GR |
LAN портове | 1 Порт |
Разширителни слотове | PCIe 1x |
PS2 портове | Да |
Брой Sata портове | 2 Порта |
Брой USB 2.0 портове (Заден I/O + Разширения) | 3+2 |
Брой USB 3.x портове (Заден I/O + Разширения) | 1+0 |
LPT (Паралелен) порт | Да (Заден I/O) |
RS 232 (серийни) портове | 2 порта |
Захранване | ATX |
Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10, Linux, BSD |
Форм фактор | Mini-ITX |
Гаранция, месеци | 36 M |
