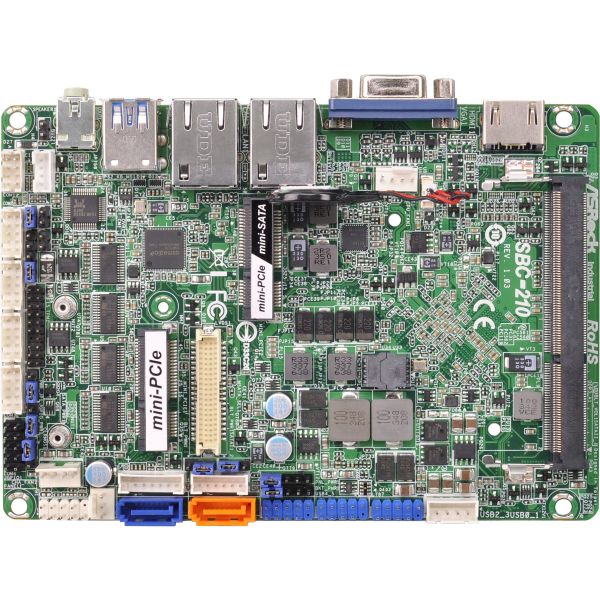

ASRock SBC-210D/ J1900, 2x LAN, 9~36V DC, 3.5"

Form Factor

Dimensions: 3.5" SBC (5.8-in x 4.0-in) / (146 x 102 mm)

Processor System

CPU: Intel® Celeron® Processor J1900 / N2930 / N2920
Core Number: 4
Max Speed: (By CPU)
L3 Cache: 2MB
Chipset: Intel® Bay Trail SoC
BIOS: UEFI

Expansion Slot

PCIe: 0
PCI: 0
Mini-PCIe: 1 (Half Size) + 1 (Full Size) shared with mSATA
mSATA: 1 (Full Size) shared with SATA2
CFast Card Socket: 0

Memory

Technology: Single Channel DDR3L 1333 MHz SDRAM
Max.: 8GB
Socket: 1 x SO-DIMM

Graphics

Controller: Intel® Gen7 Intel® Graphics DX 11, OGL3.2
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Dual Channel 24-bit, max resolution up to 1920x1200@60Hz
HDMI: Supports HDMI, max resolution up to 1920x1200
DisplayPort: No
MultiDisplay: Yes (Dual Display)

Ethernet

Ethernet: 10/100/1000 Mbps
Controller: GbE LAN: Realtek RTL8111G-CG
Connector: 2 x RJ45

Storage

Max Data Transfer Rate: SATA2 (3.0Gb/s)

Rear I/O

VGA: 1
DVI: 0
HDMI: 1
DisplayPort: 0
Ethernet: 2
USB: 2 (USB 3.0)
Audio: 1 (Line out)
Serial: 0
eSATA: 0
PS2: 0

Internal Connector

USB: 6 (3 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter: 1/1
VGA: 0
Serial: 1 x COM (RS-232/422/485), 3 x COM (RS-232)
SATA: 2 x SATA2 (3.0Gb/s)
mPCIe: 1
Parallel: 0
mSATA: 1 (shared)
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 1
Speaker Header: 1

Watchdog Timer

Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min

Power Requirements

Input PWR: 9-36V DC-In using 4-pin ATX PWR Con

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment

Temperature: 0ºC – 60ºC

Others

Ordering Information
- SBC-210D (90-PXG1U1-A0UAYZ, Gift package) : SBC-210 with Intel® Celeron® J1900, 4 Cores, 2.0GHz, 10W, 2M
- SBC-210N (90-PXG1U2-A0UAYZ, Gift package) : SBC-210 with Intel® Celeron® N2930, 4 Cores, 1.83GHz, 7.5W, 2M

*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.

Packing List

- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x COM cable
- 1 x SATA cable
- 1 x SATA power cable
- 1 x DC-IN power cable
- 1 x Heatsink
