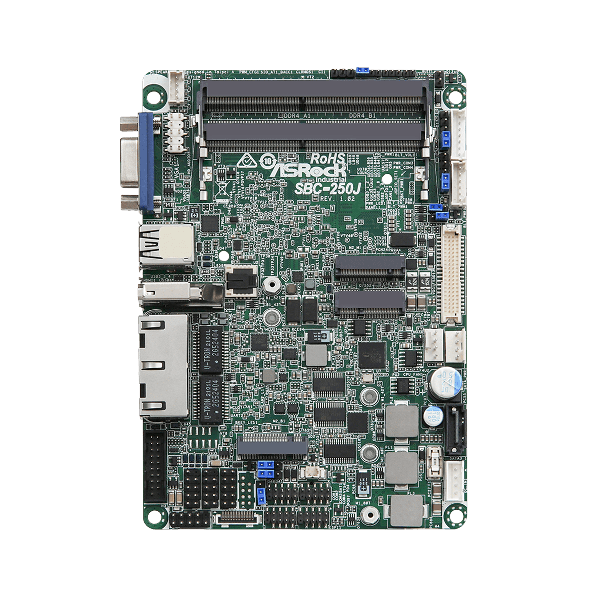

ASRock SBC-250J/ J6412 , 2x LAN, 9~36V DC, 3.5"

Form Factor

Dimensions: 3.5"SBC (5.8-in x 4-in x 0.87-in, 14.7 cm x 10.2 cm x 2.20 cm)

Processor System

CPU: Intel® Elkhart Lake SoC Processors J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset: SoC
BIOS: AMI SPI 256 Mbit

Memory

Technology: Dual Channel DDR4 3200 MHz
Capacity: 32GB (16GB per DIMM)
Socket: 2 x 260-pin SO-DIMM

Graphics

Controller: Intel® Gen 11 Graphics
HDMI: HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
VGA: Max resolution up to 1920 x 1200
LVDS: Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS)
MultiDisplay: Triple display

Expansion Slot

M.2: 1 x M.2 (Key B, 3042/3052) with PCIex1/USB 3.2 and USB 2.0 and SIM for 4G/5G 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket: 1x SIM socket connected to M.2 key B

Audid

Interface Realtek: ALC233 HD, High Definition Audio.

Ethernet

Controller/ Speed: LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45

Rear I/O

HDMI: 1 x HDMI 2.0b
VGA: 1
Ethernet: 2 x 2.5 Gigabit LAN
USB: 1 x USB 3.2 Gen2, 1 x USB 2.0

Internal Connector

USB: 1 x USB 3.2 Gen1 (1 x USB 3.1 header ), 1 x USB 2.0 (1 x USB 3.1 header), 4 x USB 2.0 (2 x 2.54 pitch header)
COM: COM1, COM2, COM4 (RS-232), COM3 (RS-232/422/485)
GPIO: 4 x GPI, 4 x GPO
LVDS: 1 (Connector with LVDS/eDP signal, switch by BIOS)
TPM: TPM 2.0 onboard IC
SATA PWR Output: 1
Speaker Header: 1

Storage

M.2: 1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 for SSD
SATA: 1 x SATA3 (6Gb/s)

Watchdog Timer

Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR: 9~36V DC-In with 4-pin wafer PWR
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp: 0ºC ~ 70ºC
Storage Temp: -40° C ~ 85° C
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%

Accessories

Gift Package: 3 x SCREW M2*2,D=5 (13G020302031AK)
1 x SINK FOR SBC-250 (13G070612000AK)
2 x COM Cable (14G000000340AK)
1 x SATA Data Cable (14G000107101AK)
1 x SATA Power Cable (14G000100410AK)
1 x DC-in Cable (14G000600900AK)
Bulk Package: 3 x SCREW M2*2,D=5 (13G020302031AK)
