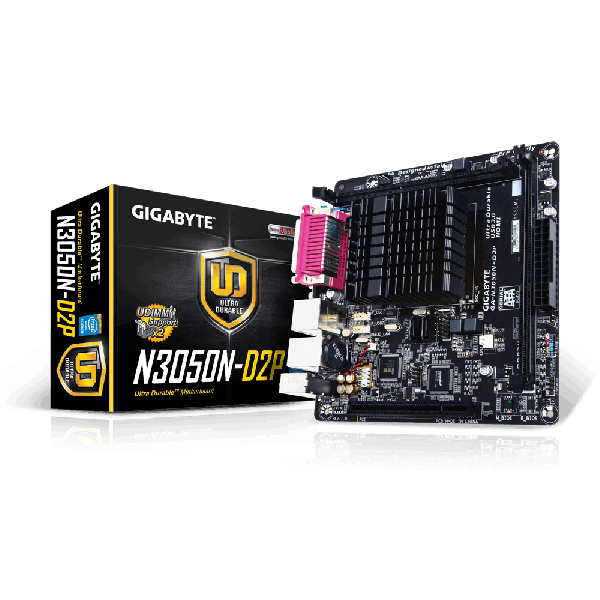

Gigabyte GA-N3050N-D2P
Built-in Intel® Celeron™ N3050 (1.6 GHz) dual-core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR3/-L UDIMM slot support
HDMI port supports 4K display on rear panel
Audio Noise Guard with High Quality Audio Capacitors
CPU
Built in with an Intel® Dual-Core Celeron® N3050 SoC (1.6 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2 MB Cache
Memory
2 x DDR3/-L U-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the UDIMM_1 socket.
Dual channel memory architecture
Support for DDR3/-L 1066/1600 MHz memory modules
Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 3840x2160
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI slot
Storage Interface
Integrated in the SoC:
2 x SATA 6Gb/s connectors
USB
Integrated in the SoC:
4 x USB 3.0/2.0 port on the back panel
4 x USB 2.0/1.1 ports (4 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 header
1 x serial port header
1 x debug card header
1 x chassis intrusion header
1 x Clear CMOS jumper
Back Panel Connectors
1 x D-Sub port
1 x HDMI port
1 x serial port
1 x parallel port
4 x USB 3.0/2.0 port
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Xpress Install
Support for @BIOS
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Bundle Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 10 32-bit/64-bit
Support for Windows 8.1 64-bit
Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Производител | Gigabyte |
---|---|
SKU | MBGBGAN3050ND2P |
Процесор | Intel® Celeron® Processor N3050 (2M Cache, up to 2.16 GHz) |
Охлаждане | Пасивно |
Чипсет | Intel® Braswell SoC |
Вид памет | DDR3/L DIMM |
Брой слотове за памет | 2 слота |
Макс. поддържана RAM | 8 GB |
Интегрирано видео | Intel® 8th generation (Gen 8) graphics: up to 12 EUs inside |
Видео Изходи | VGA, HDMI |
Мулти Дисплей | Два дисплея |
Звук | Realtek® ALC887 codec |
Мрежова карта | Realtek® GbE LAN chip (10/100/1000 Mbit) |
LAN портове | 1 Порт |
Разширителни слотове | PCI |
PS2 портове | N/A |
Брой Sata портове | 2 Порта |
Брой USB 2.0 портове (Заден I/O + Разширения) | 0+4 |
Брой USB 3.x портове (Заден I/O + Разширения) | 4+0 |
LPT (Паралелен) порт | Да (Заден I/O) |
RS 232 (серийни) портове | 2 порта |
Захранване | ATX |
Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10 |
Форм фактор | Mini-ITX |
Гаранция, месеци | 36 M |
