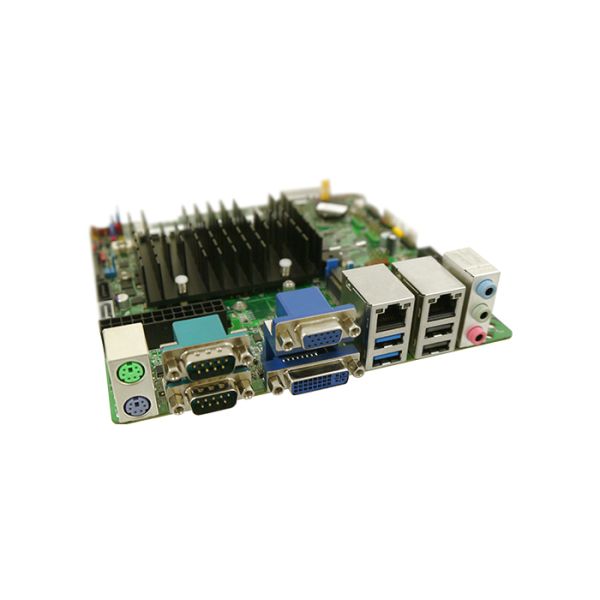

MiTAC PD11BI (CC) ATX/ J1900, 4x RS232, 2x LAN, Mini-ITX
Support Intel Bay Trail-D Dual core/Quad core processor
Intel HD graphics and DriectX 11 support
Dual channel DDR3L with two connectors for MAX. 8GB memory
Integrated Six-channel High Definition audio
Features dual high speed Gigabit Ethernet connection
Features 2 SATA 3Gb/s
Form Factor
Mini-ITX (170 millimeters [6.7 inches] x 170 millimeters [6.7 inches])
Processor Chipset
Intel Bay Trail J1900 Processor with integrated graphics (*Remark: Compatible with J1800 and J2900)
Memory
Support for dual channel DDR3L 1333/1600(runs at 1333 MHz) SO-DIMMs
Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM)
204-pin DDR3L SO-DIMM:2
Graphic Controller
Intell HD graphics and DirectX 11 support
Audio Controller
RealTek ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio.
S I/O Controller
Nuvoton NCT 6104D
Expansion Capability
PCI-e X1 slot: 1
PCI Express Full-/Half-Mini Card slot(Not support mSATA): 1
External I/O
DVI-I: 1
VGA: 1
Audio connectors: 1
Serial Port: 2
USB 2.0: 2
USB 3.0: 2
RJ45: 2
Internal I/O
LVDS: 1
S/PDIF: 1
Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio: 1
Serial Port: 2
Parallel Port: 1
USB 2.0: 4
SATA 3.0Gb/s: 2
4-pin system fan header with speed control: 1
Hardware Monitor Subsystem
Hardware monitoring through the Nuvoton NCT 6104D legacy I/O controller, including:
Remote thermal sensor
LAN Support
Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
BIOS
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
Support for Advanced Configuration and Power Interface (ACPI)
Wake on peripheral device
Power Requirement
ATX12V, SFX12V or DC12V (4-pin)
Environment
Operating Temperature: 0 °C to +60 °C
Storage Temperature: -20°C to +70°C
Safety
CE
FCC
UL
| Производител | MiTAC |
|---|---|
| SKU | BOXPD11BIJ1900ATX |
| Процесор | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) |
| Охлаждане | Пасивно |
| Чипсет | Intel® Baytrail SoC |
| Вид памет | DDR3 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 8 GB |
| Интегрирано видео | 7th Generation Intel® HD Graphics, DX11 |
| Видео Изходи | VGA, LVDS, DVI-I |
| Мулти Дисплей | Два дисплея |
| Звук | RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio |
| Мрежова карта | Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs |
| LAN портове | 2 Порта |
| Разширителни слотове | PCIe 1x, Mini PCIe (Half Size) |
| PS2 портове | Да |
| Брой Sata портове | 2 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 2+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | 2+0 |
| LPT (Паралелен) порт | Да (Header) |
| RS 232 (серийни) портове | 4 порта |
| Захранване | ATX |
| Поддържани ОC | Windows 7, Windows 8/8.1, Windows 10, Linux, BSD, Android |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24 M |
