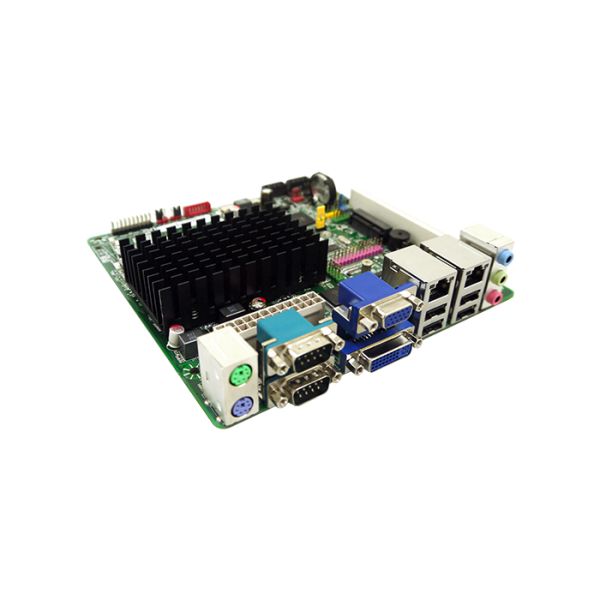

MiTAC PD12TI CC, Atom D2500, 2x RS232, 2x LAN, Mini-ITX
Support Intel Atom D2550 dual core processor
Intel Graphic Media Accelerator 3600
Single channel DDR3 with two connectors for MAX. 4GB memory
Integrated Six-channel High Definition audio
Features dual high speed Gigabit Ethernet connection
Form Factor
Mini-ITX (170 millimeters [6.7 inches] x 170 millimeters [6.7 inches])
Processor Chipset
Passively-cooled, soldered-down dual-core Intel® Atom™ processor with integrated graphics and memory controller
Main Memory
Two 204-pin Double Data Rate 3 (DDR3) Small Outline Dual Inline Memory Module (SO-DIMM) sockets with gold-plated contacts
Support for DDR3 1066/1333/1600 MHz SO-DIMMs (DDR3 1333 MHz and DDR3 1600 MHz SO-DIMMs operate at 1066 MHz only)
Support for up to 4 GB of system memory
Chipset
Intel® NM10 Express
Integrated Graphics
Intel® Graphics Media Accelerator 3600 (Intel® GMA 3600) integrated graphics subsystem with support for digital video (DVI-I), VGA, and flat panel displays via an LVDS display interface
External Graphics
External graphics support provided through the PCI bus connector
Audio
RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio. Included are:
Back panel audio connectors
Onboard S/PDIF digital audio header
Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio
Legacy I/O
Legacy I/O Controller (Nuvoton* W83677HG-I) that provides:
Four serial ports: two via onboard headers and two via back panel connectors
One parallel port via an onboard header
Hardware management support
Expansion Capabilities
One PCI* bus add-in card connector One PCI Express* Full-Mini Card slot with Half-Mini Card support
Peripheral Interfaces
Seven USB 2.0 ports:
Four back panel ports
Three front panel ports (via two internal headers; a single-port header supports an Intel® Z-U130 USB Solid-State Drive or compatible device
Two Serial ATA (SATA) 3.0 Gb/s interfaces
Hardware Monitor Subsystem
Hardware monitoring through the Nuvoton* W83627DH-P legacy I/O controller, including:
Remote thermal sensor
One 3-pin system fan header with speed control
LAN Support
Intel® 82574L Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
BIOS
Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology
Support for Advanced Configuration and Power Interface (ACPI)
Wake on USB, PCI, PCI Express, LAN, serial, PS/2, and front panel
Power Requirement
ATX12V or SFX12V
Environment
Operating Temperature: 0 °C to +60 °C
Storage Temperature: -20°C to +70°C
Safety
CE
FCC
UL
| Производител | MiTAC |
|---|---|
| SKU | BLKPD12TI |
| Процесор | Intel® Atom™ Dual-Core Processor D2500 (1M Cache, 1.86 GHz) |
| Охлаждане | Пасивно |
| Чипсет | Intel® NM10 Express |
| Вид памет | DDR3 SODIMM |
| Брой слотове за памет | 2 слота |
| Макс. поддържана RAM | 4 GB |
| Интегрирано видео | Intel® Graphics Media Accelerator 3600, 400Mhz clock |
| Видео Изходи | VGA, LVDS, DVI-I |
| Мулти Дисплей | Два дисплея |
| Звук | Intel® High Definition Audio(Realtek ALC662 audio codec), Eight (6+2) channel, Intel® HD Audio Front panel mic/headphone header (2x5) |
| Мрежова карта | 2x Intel 82574L Gigabit Ethernet Controllers |
| LAN портове | 2 Порта |
| Разширителни слотове | PCI, Mini PCIe (Half Size) |
| PS2 портове | Да |
| Брой Sata портове | 2 Порта |
| Брой USB 2.0 портове (Заден I/O + Разширения) | 4+4 |
| Брой USB 3.x портове (Заден I/O + Разширения) | NA |
| LPT (Паралелен) порт | Да (Header) |
| RS 232 (серийни) портове | 4 порта |
| Допълнителни функции | TPM Header |
| Захранване | ATX |
| Поддържани ОC | Само 32бита, Windows XP, Windows 7, Windows 8/8.1, Linux |
| Форм фактор | Mini-ITX |
| Гаранция, месеци | 24 M |
