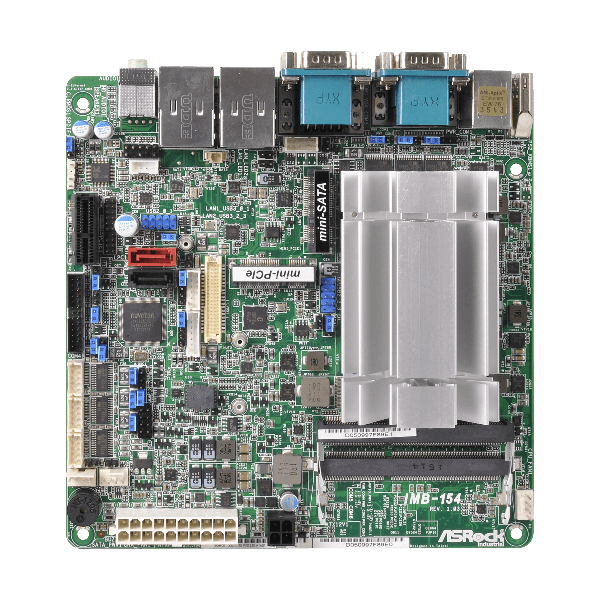

ASRock IMB-154B/ N3160, Mini-ITX
Intel® Celeron® N3160 Braswell SoC Processor
Integrated Intel® Gen8 Intel® Graphics DX 11, OGL3.2
2 x DDR3L SO-DIMM, up to 8GB system memory
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS/eDP
4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
1 x mini-PCIe, 1 x mSATA(shared)
2 x Realtek Gigabit Lan
1 x TPM Header
12V or 19~24V DC in
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Intel® Pentium® / Celeron® Braswell SoC
Core Number: (By CPU, Max 4)
Max Speed: (By CPU)
L2 Cache: (By CPU)
Chipset: Intel® Braswell SoC
BIOS: UEFI
Expansion Slot
PCI: 0
Mini-PCIe: 1 (Full size), PCIe only
mSATA: 1
SIM: 1 x PCIe x1 slot
Memory
Technology: Dual Channel DDR3L 1333 / 1600 MHz SDRAM
Max.: 8GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® Gen8 Intel® Graphics DX 11*, OGL3.2
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Dual channel 24-bit co-lay with eDP, max resolution up to 1920x1200@60Hz
HDMI: Supports HDMI with Level Shifter , max resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz
DisplayPort: No
MultiDisplay: Yes (Triple Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: 2 x Realtek RTL8111G
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA3 (6.0Gb/s)
Rear I/O
VGA: 1
DVI: 0
HDMI: 1
DisplayPort: 0
Ethernet: 2
USB: 4 x USB 3.0
Audio: 2 (Mic-in, Line-out)
Serial: 3 x RS-232 (COM1/COM2 support RS-422/485)
eSATA: 0
PS2: PS2 x2, KB & MS stack
Internal Connector
USB: 4 (2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter: 1/1
VGA: 0
Serial: 3 x 2.0 pitch header RS-232
SATA: 2 x SATA3 (6.0Gb/s)
mPCIe: 1
Parallel: 1 (Co-lay with 8in/8out DIO)
mSATA: 1(Share with SATA2)
IrDA: 0
GPIO 8-bit: 8 x GPI + 8 x GPO
SATA PWR Output Con: 1
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: 12V or 19~24V DC in (4-pin ATX PWR Con) / ATX
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature: 0ºC – 60ºC
| Manufacturer | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB154B |
| CPU | Intel® Celeron® Processor N3160 (2M Cache, up to 2.24 GHz) |
| Cooling | Fanless |
| Chipset | Intel® Braswell SoC |
| Memory type | DDR3L SODIMM |
| Qty of Memory Slots | 2 Slots |
| Max. Supported RAM | 8 GB |
| Onboard Graphics | Integrated Intel® Gen8 Intel® Graphics DX 11, OGL3.2 |
| Display Outputs | VGA, HDMI, eDP, LVDS |
| Multi Display | Triple Display |
| Sound Codec | Realtek ALC887 |
| Ethernet | 2 x Realtek RTL8111G |
| LAN Ports | 2 Ports |
| Expansion slots | PCIe 1x, mSata Slot, USB over Mini PCIe Support, Mini PCIe (Half/Full ) |
| PS2 Ports | Yes |
| Qty of Sata Ports | 2 Ports |
| Qty of USB2.0 Ports (Rear I/O + Headers) | 0+4 |
| Qty of USB 3.x Ports (Rear I/O + Headers) | 4+0 |
| LPT port | Yes (Header) |
| Serial Ports | 6 Ports |
| Additional features | RS232/422/485, Watchdog Timer, GPIO, TPM Header |
| Input Power | 12V DC or 19~24 DC |
| Supported OS | Windows 7, Windows 8/8.1, Windows 10, Linux, BSD |
| Form Factor | Mini-ITX |
| Warranty | 24M |
