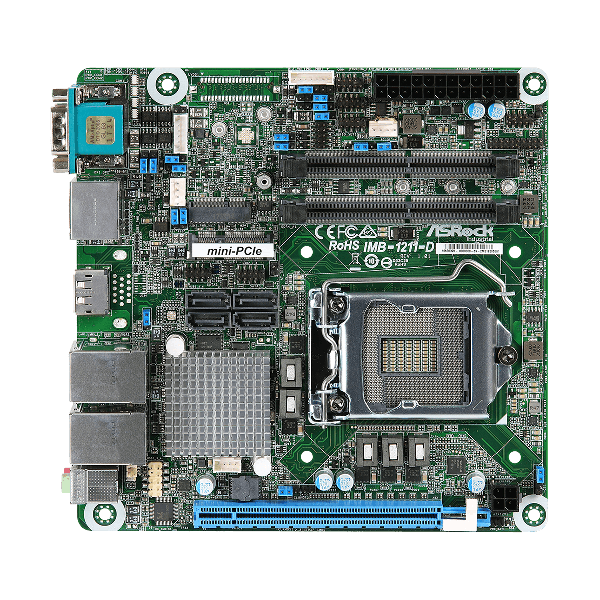

ASRock IMB-1211D/ 2x LAN, 5 x COM, Mini-ITX
Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron
Supports Dual Channel DDR4 SO DIMM 2400/2666, up to 32GB
3 x Displayport, 1 x eDP
4 x USB 3.1, 4 x USB 2.0, 4 x SATA3, 5 x COM
1 x PCIe x16, 1 x Mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
2 x Intel® LAN
1 x TPM 2.0 IC
ATX PWR 24+4-pin
Supports RAID function
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Socket LGA 1151 for Intel® Core i7/i5/i3/Celeron® (Supports up to 65W)
Chipset: Intel® Q370
BIOS: UEFI
Expansion Slot
PCIe: 1 xPCIe x16 (Support riser card)
PCI: N/A
Mini-PCIe: 1 x Full/Half mini-PCIe with PCIe x1 and USB 2.0
M.2:
- 1x M.2 (Key E, 2230) with PCIe x1, CNVI and USB2.0 for Wireless
- 1x M.2 (Key M, 2242/ 2280) with PCIe x4 and SATA3 for SSD
Memory
Technology: Dual Channel DDR4 2400/ 2666 MHz
Max.: 32GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® HD Graphics (By CPU)
VRAM: N/A
VGA: N/A
DVI: N/A
LVDS: Yes
HDMI: N/A
DisplayPort: Yes
MultiDisplay: Yes (Triple Display)
eDP: Yes
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: 1 x Intel® I219LM, 1 x Realtek RTL8111H
Connector: 2 x RJ45
Storage
Rear I/O
VGA: N/A
DVI: N/A
HDMI: N/A
DisplayPort: 3
Ethernet: 2
USB: 4 x USB 3.1
Audio: 2 (Mic-in, Line-out)
Serial: 2x COM(RS-232/422/485)
PS2: N/A
Internal Connector
USB: 4 x USB2.0
LVDS: N/A
VGA: N/A
Serial: 3 x COM(RS-232)
SATA: 4 x SATA3 (6.0Gb/s)
GPIO: 4 x GPI, 4 x GPO
SATA PWR Outpu: N/A
Speaker Header: 1
TPM: 1 x Onboard IC
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: ATX PWR (4 + 24)
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature: 0ºC – 60ºC
| Manufacturer | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB1211D |
| CPU Socket | LGA1151 |
| CPU | Intel® Core i7/i5/i3/Celeron® (Supports up to 65W) |
| Chipset | Intel® Q370 |
| Memory type | DDR4 SODIMM |
| Qty of Memory Slots | 2 Slots |
| Max. Supported RAM | 32 GB |
| Onboard Graphics | Intel® HD Graphics (By CPU) |
| Display Outputs | Displayport, eDP |
| Multi Display | Triple Display |
| Sound Codec | Realtek ALC887, High Definition Audio. Line-out,Mic-in |
| Ethernet | LAN1: 1 x Intel® I210 with 10/100/1000 Mbps LAN2: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro |
| LAN Ports | 2 Ports |
| Expansion slots | PCIe 4x, PCIe16x, Mini PCIe (Half/Full ) |
| PS2 Ports | N/A |
| Qty of Sata Ports | 2 Ports |
| Qty of USB2.0 Ports (Rear I/O + Headers) | 2+2 |
| Qty of USB 3.x Ports (Rear I/O + Headers) | 2+2 |
| LPT port | No |
| Serial Ports | 5 ports |
| Additional features | RS232/422/485, GPIO, TPM Header |
| Input Power | ATX |
| Supported OS | Windows 7, Windows 8/8.1, Windows 10 |
| Form Factor | Mini-ITX |
