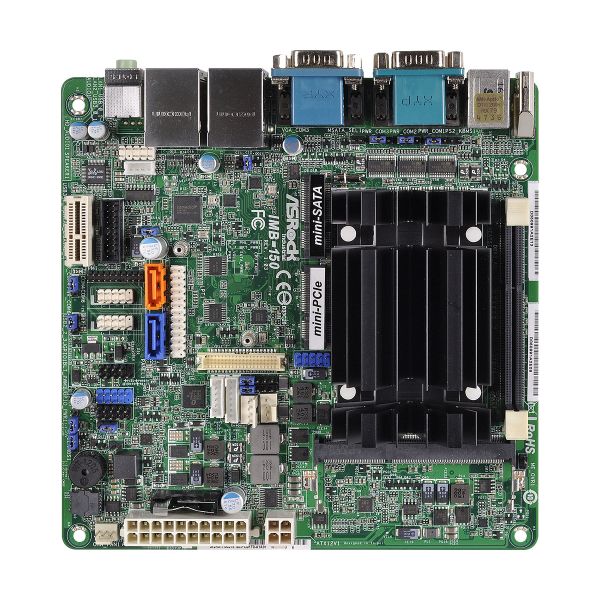

ASRock IMB-150D/ J1900, 5x RS232, DC, Mini-ITX
Intel® Quad Core J1900 Processor
Gen 7 Intel® Graphics with Dual View support
1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
3 x COM (RS-232/422/485), 2 x COM (RS-232)
2 x Gigabit Lan
9~19V DC / ATX Power Support
Form Factor
Dimensions: Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU: Intel® Celeron® Processor J1900 / N2930 / N2920
Core Number: 4
Max Speed: (By CPU)
L3 Cache: 2MB
Chipset: Intel® Bay Trail SoC
BIOS: UEFI
Expansion Slot
PCIe: 1
PCI: 0
Mini-PCIe: 1 (Half Size)
mSATA: 1
CFast Card Socket: 0
Memory
Technology: Dual Channel DDR3 1333 MHz SDRAM
Max.: 8GB
Socket: 2 x SO-DIMM
Graphics
Controller: Intel® Gen7 Intel® Graphics DX 11*, OGL3.2
VRAM: Shared Memory
VGA: Supports max resolution up to 1920x1200
DVI: No
LVDS: Dual Channel 24-bit, max resolution up to 1920x1200@60Hz
HDMI: Supports HDMI, max resolution up to 1920x1200
DisplayPort: No
MultiDisplay: Yes (Dual Display)
Ethernet
Ethernet: 10/100/1000 Mbps
Controller: GbE LAN: 2 x Realtek RTL8111G-CG
Connector: 2 x RJ45
Storage
Max Data Transfer Rate: SATA2 (3.0Gb/s)
Rear I/O
VGA: 1
DVI: 0
HDMI: 1
DisplayPort: 0
Ethernet: 2
USB: 4 (2 x USB 3.0, 2 x USB 2.0)
Audio: 2 (Mic-in, Line-out)
Serial: 3 (RS-232/422/485)
eSATA: 0
PS2: 2 (1 x keyboard, 1 x mouse)
Internal Connector
USB: 6 (2 x USB 3.0, 4 x USB 2.0)
LVDS / inverter: 1/1
VGA: 0
Serial: 2 (RS-232)
SATA: 2 x SATA2 (3.0Gb/s)
mPCIe: 1
Parallel: 1
mSATA: 1 (shared)
IrDA: 0
GPIO 8-bit: 4 x GPI + 4 x GPO
SATA PWR Output Con: 1
Speaker Header: 1
Watchdog Timer
Output: From Super I/O to drag RESETCON#
Interval: 256 Segments, 0, 1, 2, ...255sec/min
Power Requirements
Input PWR: 9-19V DC-In (4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Environment
Temperature: 0ºC – 60ºC
Others
Ordering Information
- IMB-150D (90-PXG1T0-A0UAYZ, Gift package) : IMB-150 with Intel® Celeron® J1900, 4 Cores, 2.0GHz, 10W, 2M
- IMB-150N (90-PXG1T2-A0UAYZ, Gift package) : IMB-150 with Intel® Celeron® N2930, 4 Cores, 1.83GHz, 7.5W, 2M
*The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
Packing List
- 1 x Jumper setting guide
- 1 x Driver DVD
- 1 x IO shield
- 2 x SATA cable
- 1 x SATA power cable
- 2 x Screw for mini card
| Manufacturer | Asrock IPC |
|---|---|
| SKU | MBASRIPCIMB150D |
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) |
| Cooling | Fanless |
| Chipset | Intel® Bay Trail SoC |
| Memory type | DDR3L SODIMM |
| Qty of Memory Slots | 2 Slots |
| Max. Supported RAM | 8 GB |
| Onboard Graphics | 7th Generation Intel® HD Graphics DX 11, OGL3.2 |
| Display Outputs | VGA, HDMI, LVDS |
| Multi Display | Dual Display |
| Sound Codec | Realtek ALC662 |
| Ethernet | 2xRealtek RTL8111G-CG GbE LAN |
| LAN Ports | 2 Ports |
| Expansion slots | PCIe 1x, mSata Support, 2x Mini PCIe (1x Half, 1x Full Size) |
| PS2 Ports | Yes |
| Qty of Sata Ports | 2 Ports |
| Qty of USB2.0 Ports (Rear I/O + Headers) | 2+4 |
| Qty of USB 3.x Ports (Rear I/O + Headers) | 2+2 |
| LPT port | Yes (Header) |
| Serial Ports | 5 ports |
| Additional features | RS232/422/485, Watchdog Timer, GPIO, TPM Header |
| Input Power | 9~19V DC / ATX |
| Supported OS | Windows 7, Windows 8/8.1, Windows 10, Linux |
| Form Factor | Mini-ITX |
| Warranty | 24M |
